2009 SRM Wireless PowerMeter FSA Gossamer standard crank set 53T/39T 172.5mm road

Sold: $1,000 Buyer: Australia

2009 SRM Wireless PowerMeter FSA Gossamer standard crank set 53T/39T 172.5mm road

Frame and Wheel is auctioning a wireless SRM PowerMeter FSA Gossamer crank set on the Frame and Wheel eBay Store. The power meter crank set was purchased new and has had only one owner. It was mounted on a time trial bike and used for triathlon and training. It was parted out in 2012. The crank set is being sold because it is no longer needed. The PowerMeter crank set features FSA Gossamer alloy crank arms, FSA 53T / 39T chain rings, FSA GXP Mega Exo bottom bracket compatibility, ANT + wireless protocol, new batteries, and newly serviced calibration. The power meter crank set was sent to SRM USA for servicing and testing in November 2012. The batteries in the crank set are new and the crank set calibration was tested with a PowerControl. The power meter crank set as shown weighs 972 g. The serial number on the back of the crank set reads PM:19634. SRM USA testing and servicing paperwork included.  Requires FSA GXP bottom bracket cup set. PowerMeter crank set only in this offering! PowerControl unit, bottom bracket, SRM software, heart rate monitor strap, magnet, sensor, charger, mount USB not included. There are 25 images of the crank set on the Frame and Wheel Flickr page. Please take a look.

Important information

There is a $75.00 Product Analysis and Service (PAAS) charge included in the shipping for this item. For more information about the PAAS and other Frame and Wheel shipping and return policies, please see section at the end of the item description. Please visit the Frame and Wheel website for more information about the service and the company. Thank you.

Important information

The $125.00 cost of having the crank set sent to, inspected, tested and serviced by SRM USA is paid for by the buyer and included in the shipping. The crank set was sent to SRM USA in November 2012. Please see below for summary of servicing.

Review of condition

The power meter crank set is in good condition. It is clean and ready for installation and use. The chain rings are not bent and the teeth are not chipped or broken. The chain ring bolts are not stripped or corroded or locked into place. The pedal thread bolts are not stripped. None of the chain ring bolts are missing. The splines on the spindle are not rounded off. There is no wear on the crank arms. The crank set was returned to SRM USA for servicing and inspection in November 2012. SRM USA did the following: 1) Disassemble power meter, chainrings and crank arms. Clean and check reed switches, solder pad, coil, wires and lid. Load firmware, solder new batteries, test current and zero offset. Reassemble power meter with chain rings and crank arms. Calibration, test with PowerControl. SRM concluded that zero offset, power and cadence were OK. 2) Provide new slope=28.2/Nm. Frame and Wheel notes the following. The chain ring teeth show wear. There is light surface corrosion on the surface of the outer chain ring.

Frame and Wheel conclusion

Frame and Wheel’s view is that this SRM PowerMeter FSA Gossamer crank set will make an excellent choice for the dedicated cyclist or triathlete who seeks to train and race with a power meter and who is already in possession of a SRM PowerControl unit or ANT + enabled device such as a Garmin Edge 500. The power meter crank set is in good condition and ready to return to the road. This crank set is just back from servicing and testing at SRM USA and is ready to measure watts with ruthless accuracy. The new owner’s cycling performance will ultimately benefit from the reams of data made available by this tool, despite the almost certain disillusionment that will follow on the first 20 minute threshold power test. A great opportunity to obtain an instrument that has become ubiquitous in competitive cycling.

FSA Gossamer Standard information

Specifications

Brand: SRM

Model: FSA Gossamer

Model year: 2009

Type: Wireless

Wireless protocol: ANT +

Serial number: PM19634

Slope: 28.2 Hz/Nm

FCC ID: WCS-PM6

IC: 7761A-PM6

Strain gauges: 8

Cadence range: 30-255 rpm

Wattage range: 0 to 4096 watts

Accuracy: +/- 2%

Q-Factor: 150 mm

SRM PowerControl compatibility: Wireless VI and Wireless VII

Other device compatibility: Garmin Edge 500, Garmin Edge 800

Crank arm material: aluminum alloy

Chain rings: FSA 53T outer FSA 39T inner

Chain compatibility: 10 speed

Type: Double

Series: Road

Crank arm length: 172.5 mm

Bolt circle diameter: 130 mm

Bottom bracket: FSA BB 6000 GXP Mega Exo cup set not included

Spindle type: 10 splines ISIS drive

Spindle diameter: 24 mm

Spindle length: 110 mm

Finish: Black

Weight: 972 g (Cranks and chain rings)

Frame and Wheel rating: Good condition

Frame and Wheel PAAS charge: $75.00

CompuTrainer Lab stand alone training system hardware software

Sold: $1,125  Buyer: USA

CompuTrainer Lab stand alone training system hardware software

Frame and Wheel is auctioning a CompuTrainer Lab stand alone training system on the Frame and Wheel eBay Store. The system was used by an individual for training. The system is being sold because it is no longer needed. The system features  CompuTrainer Lab electronic load generator, Posilock rear mount stand with adjustable quick-release; CompuTrainer Plus microprocessor handlebar controller and bracket, front wheel support, cadence sensor, velcro strap and magnet, DIN cable, USB to stereo adapter, fifteen foot right angle stereo cable, CompuTrainer Stand Alone Users Guide, CompuTrainer Insert Me First CD-ROM and RacerMate Ironman Canada Interactive Real Bike Course Videos DVD. The electronic load generator and stand weighs 23 pounds. The serial number on the electronic load generator reads 35312LG. The serial number on the microprocessor reads 35094HB. No earclip heart rate sensor included. No Polar Wireless heart rate receiver & adapter cable incldued. No skewer included. Austro-Daimler Superleicht Carbon Di2 not included. Please see 60 additional images of the system and video of the microprocessor in action Frame and Wheel’s Flickr page. The new owner can download for free the original 3D software from RacerMate’s website. A new version is available for purchase. A variety of accessories and support services can be obtained directly from RacerMate.

Review of condition

Frame and Wheel set up the CompuTrainer system in Stand Alone mode and tested all of its functions to ensure that it works properly. Frame and Wheel did not connect the CompuTrainer to a PC. The CompuTrainer is in very good condition. It works properly and shows very little signs of wear. The electronic load generator produces resistance and powers up properly. The barrel on the load generator is not worn. The adjustable quick release works properly and easily. It is not corroded. The stand is stable and not corroded. The microprocessor display works properly and cycles through its various pages properly. The screen is not damaged or scratched. The Stand Alone modes (Rolling Resistance Calibration, Ergometer Mode program and General Exercise program) all function properly. The cadence sensor works properly. Frame and Wheel notes that the magnet for the cadence sensor is not the original original.

Frame and Wheel conclusion

Frame and Wheel’s view is that this CompuTrainer Lab will make an excellent choice for the cyclist or triathlete who seeks a dedicated indoor training system that uses software to provide entertaining video and productive workouts. The system does not take up a lot of space , it is relatively quiet and it allows for the use of an existing road bike. It can also be used as a “stand-alone” trainer that measures watts, heart rate, speed and distance. The new owner will quickly discover how challenging and productive training on a CompuTrainer can be, and will no doubt notice the difference when riding on the road. A very rare opportunity to obtain a lightly used and excellent training tool.

Electronic Load Generator Specifications

Brand: Racermate

Model: CompuTrainer Lab

Model Year: 2010 approximate

Serial number: 35312LG

Weight with stand: 23 pounds

Finish: Blue

Microprocessor handlebar controller specifications

Brand: Racermate

Model: CompuTrainer Plus

Model number: Model 8002

Serial number: 35094HB

Weight with bracket: 237 g

Finish: yellow

Power supply specifications

Brand: Racermate

Model: 66-220-2500A

Voltage: 120 volts

Summary of hardware items included

Electronic load generator and rear mount stand

Microprocessor handlebar controller and bracket

Power supply and cables

Microprocessor to electronic load generator cable DIN cable

Cadence sensor cable, velcro strap and magnet

USB to stereo adapter

15 foot right angle stereo cable

Front wheel support

Summary of software items included

• Computrainer Insert Me First!
• RacerMate Ironman Canada Interactive Real Bike Course Videos DVD

Summary of manuals included

• CompuTrainer Pro Basic Stand Alone Users Guide March 2009
• Read me first
• PC System requirement & set up notes
• Computrainer Race Platform plan
• Window Vista User information
• Racermate software agreement

More information about Computrainer Lab System

Zipp 202 tubular carbon wheelset 700c 18/24 spoke Zipp 88/188 hub SS skewer NOS

Sold: $932  Buyer: United Kingdom

Zipp 202 tubular carbon wheelset 700c 18/24 spoke Zipp 88/188 hub SS skewer NOS

Frame and Wheel is auctioning a Zipp 202 wheel set on the Frame and Wheel eBay Store. The wheels are from an independent bicycle dealer’s inventory of wheel goods. The wheels are new. They have been on display. The have never been used. A cassette has never been installed. The rims have never been glued. The wheels feature carbon rim and shell, ABLC dimpled rim shell surfaces, Zipp 88 front hub and Zipp 188 rear hub, 32 mm rim depth, 23 mm rim width, 18 (F) / 24 (R) spoke count, adjustable hubs, Zipp stainless steel skewers, Beyond Black lettering, original instruction booklet, Zipp valve extenders, light weight and Zipp cool. Includes four Zipp brake pads. The wheels as shown weigh 2 pounds 9 ounces (1.2 kg). There are 60 images of the wheel set at Frame and Wheel’s Flickr page. Please take a look. 2

Review of condition

The wheels are in excellent condition. They are clean and they are ready to ride. The hubs spin smoothly and freely. The spokes are tight and straight. The rims are round and the wheels are true. There is no wear on the braking surfaces of the rims. There is no lateral or vertical variation in the rims when placed in a truing stand. There are no cracks, flexing or flaking in the carbon rim or the carbon shell. There are no notches in the free hub body splines from a cassette. There are no cracks in the hub bodies. There is no play in the hubs. There are no cracks in the flanges of the hubs. There is no corrosion on the spokes, the nipples or on the skewers. The stickers are not peeling off. The skewers are straight and complete. Frame and Wheel notes that there is a 5 mm x 5 mm abrasion on one of the non drive side Zipp stickers.

Frame and Wheel conclusion

Frame and Wheel’s view is that this Zipp 202 wheel set will make an excellent choice for the dedicated road cyclist who seeks a very light, strong and versatile tubular wheel set for racing and training. This wheel set is new and in excellent condition. Frame and Wheel favors the Zipp 202 because of its light weight and its strength and has used Zipp 202s successfully at the Tour of the Catskills and the Tour of the Battenkill. Frame and Wheel is informed that Zipp 202s are also an excellent choice for cyclocross. These wheels will materially transform the weight, look and feel of any road bike and will help trigger triumphant performance revelations for the new owner. An excellent opportunity to obtain one of Zipp’s finest wheel set.

Specifications

Front

Brand: Zipp

Model: 202

Year: 2011

Rim material: carbon VCLC

Rim shell material: carbon ABLC

Series: road

Type: tubular

Rim serial number: not given

Hub serial number: Z1612110539

Size: 700c

Weight with skewer: 1 pound 2 ounce / 520 g

Spoke count: 18

Spokes: steel bladed black external nipples

Lacing: radial

Hub: Zipp 88

Hub material: alloy

Skewer: Zipp stainless steel

Rim depth: 32 mm (measured by Frame and Wheel)

Rim width: 23.0 mm (measured by Frame and Wheel)

Tire: not included

Over Lock Nut Dimension: 100 mm

Finish: black lettering grey banner on carbon

Frame and Wheel rating: Excellent condition

Rear

Brand: Zipp

Model: 202

Model year: 2012

Rim material: carbon VCLC

Rim shell material: carbon ABLC

Type: tubular

Series: Road

Rim serial number: 595255

Hub serial number: Z3101120419

Size: 700c

Rear wheel weight with skewer: 1 pounds 7 ounces / 660 g

Spoke count: 24

Spokes: steel bladed black external nipples

Lacing: 1-cross non drive side radial drive side

Hub: Zipp 188

Hub material: alloy

Skewer: Zipp stainless steel

Rim depth: 32.0 mm (measured by Frame and Wheel)

Rim width: 23.0 mm (measured by Frame and Wheel)

Tire: not included

Over Lock Nut Dimension: 130 mm

Free hub: Shimano

Free hub body width: 35 mm

Finish: black lettering grey banner on carbon

Frame and Wheel rating: Excellent condition

Frame and Wheel PAAS charge: $50.00

Wheel box deposit: $45.00

Reynolds Assault carbon clincher wheelset 700c 20/24 spoke Reynolds hub SS skewer NOS

Sold: $610  Buyer: USA

Reynolds Assault carbon clincher wheelset 700c 20/24 spoke Reynolds hub SS skewer NOS

Frame and Wheel is auctioning a Reynolds Assault carbon clincher wheel set on the Frame and Wheel eBay Store. The wheels are from an independent bicycle dealer’s inventory of wheel goods. The wheels are new. They have been on display. The have never been used. A cassette has never been installed. Tires have never been mounted. The wheels feature carbon clincher design, CTg braking system, Reynolds front and rear hub, 46 mm rim depth, 21 mm rim width, 20 (F) / 24 (R) spoke count, Reynolds stainless steel skewers, light weight and Reynolds provenance. The wheels as shown weigh 3 pounds 11 ounces (1.7 kg). Reynolds Cryo-Blue brake pads not included. Valve extenders, hex tool and instruction booklet not included. There are 50 images of the wheel set at Frame and Wheel’s Flickr page. Please take a look.

Review of condition

The wheels are in excellent condition. They are clean and they are ready to ride. The hubs spin smoothly and freely. The spokes are tight and straight. The rims are round and the wheels are true. There is no wear on the braking surfaces of the rims. There is no lateral or vertical variation in the rims when placed in a truing stand. There are no cracks, flexing or flaking in the carbon rim or the carbon shell. There are no notches in the free hub body splines from a cassette. There are no cracks in the hub bodies. There is no play in the hubs. There are no cracks in the flanges of the hubs. There is no corrosion on the spokes, the nipples or on the skewers. The stickers are not peeling off. The rim tape is not broken The skewers are straight and complete. Frame and Wheel notes an imperfection on the front wheel sticker.

Frame and Wheel conclusion

Frame and Wheel’s view is that this Reynolds Assault wheel set will make a fine choice for the road cyclist who seeks a carbon clincher wheel set that is strong enough for heavy duty training and light enough for racing. They will also make a good choice for cyclocross. The wheel set is new and in excellent condition. Set up with Continental Grand Prix 4000S tires, these wheels will change the voice and performance characteristics of any road bike and provide deep dish satisfaction for the new owner. A fine opportunity to obtain Reynolds Cycling’s most practical and versatile wheel set.

Specifications

Front

Brand: Reynolds

Model: Assault

Year: 2011

Rim material: carbon

Rim shell material: carbon

Series: road

Type: clincher

ETRTO: 622 x 15

Rim serial number: not given

Hub serial number: 1101-QLS2F-488

Size: 700c

Weight with skewer: 1 pound 10 ounce / 750 g

Spoke count: 20

Spokes: aluminum straight gauge black internal nipples

Lacing: radial

Hub: Reynolds / KT Hubs

Hub material: alloy

Skewer: Reynolds stainless steel

Rim depth: 46.0 mm (measured by Frame and Wheel)

Rim width: 21.0 mm (measured by Frame and Wheel)

Tire: not included

Base tape: Reynolds plastic

Over Lock Nut Dimension: 100 mm

Finish: black lettering white banner on carbon

Frame and Wheel rating: Excellent condition

Rear

Brand: Reynolds

Model: Assault

Year: 2011

Rim material: carbon

Rim shell material: carbon

Type: clincher

ETRTO: 622 x 15C

Series: Road

Rim serial number: not given

Hub serial number: 1101-QZL2R-925

Size: 700c

Rear wheel weight with skewer: 2 pounds 1 ounces / 940 g

Spoke count: 24

Spokes: aluminum straight gauge black internal nipples

Lacing: 2-cross drive side radial non drive side

Hub: Reynolds / KT Hubs

Hub material: alloy

Skewer: Reynolds stainless steel

Rim depth: 46.0 mm (measured by Frame and Wheel)

Rim width: 21.0 mm (measured by Frame and Wheel)

Tire: not included

Base tape: Reynolds plastic

Over Lock Nut Dimension: 130 mm

Free hub body: Shimano

Free hub body width: 35 mm

Finish: black lettering white banner on carbon

Frame and Wheel rating: Excellent condition

Frame and Wheel PAAS charge: $50.00

Wheel box deposit: $45.00

Zipp 202 tubular carbon wheelset 700c 18/24 spoke Zipp 88/188 hub SS skewer NOS

Sold: $1220  Buyer: Australia

Zipp 202 tubular carbon wheelset 700c 18/24 spoke Zipp 88/188 hub SS skewer NOS

Frame and Wheel is auctioning a Zipp 202 wheel set on the Frame and Wheel eBay Store. The wheels are from an independent bicycle dealer’s inventory of wheel goods. The wheels are new. They have been on display. The have never been used. A cassette has never been installed. The rims have never been glued. The wheels feature carbon rim and shell, ABLC dimpled rim shell surfaces, Zipp 88 front hub and Zipp 188 rear hub, 32 mm rim depth, 23 mm rim width, 18 (F) / 24 (R) spoke count, adjustable hubs, Zipp stainless steel skewers, Beyond Black lettering, original instruction booklet, Zipp valve extenders, light weight and Zipp cool. The wheels as shown weigh 2 pounds 9 ounces (1.2 kg). There are 45 images of the wheel set at Frame and Wheel’s Flickr page. Please take a look. 1

Review of condition

The wheels are in excellent condition. They are clean and they are ready to ride. The hubs spin smoothly and freely. The spokes are tight and straight. The rims are round and the wheels are true. There is no wear on the braking surfaces of the rims. There is no lateral or vertical variation in the rims when placed in a truing stand. There are no cracks, flexing or flaking in the carbon rim or the carbon shell. There are no notches in the free hub body splines from a cassette. There are no cracks in the hub bodies. There is no play in the hubs. There are no cracks in the flanges of the hubs. There is no corrosion on the spokes, the nipples or on the skewers. The stickers are not peeling off. The skewers are straight and complete.

Frame and Wheel conclusion

Frame and Wheel’s view is that this Zipp 202 wheel set will make an excellent choice for the dedicated road cyclist who seeks a very light, strong and versatile tubular wheel set for racing and training. This wheel set is new and in excellent condition. Frame and Wheel favors the Zipp 202 because of its light weight and its strength and has used Zipp 202s successfully at the Tour of the Catskills and the Tour of the Battenkill. Frame and Wheel is informed that Zipp 202s are also an excellent choice for cyclocross. These wheels will materially transform the weight, look and feel of any road bike and will help trigger triumphant performance revelations for the new owner. An excellent opportunity to obtain one of Zipp’s finest wheel set.

Specifications

Front

Brand: Zipp

Model: 202

Year: 2011

Rim material: carbon VCLC

Rim shell material: carbon ABLC

Series: road

Type: tubular

Rim serial number: 595271

Hub serial number: Z2211110554

Size: 700c

Weight with skewer: 1 pound 2 ounce / 520 g

Spoke count: 18

Spokes: steel bladed black external nipples

Lacing: radial

Hub: Zipp 88

Hub material: alloy

Skewer: Zipp stainless steel

Rim depth: 32 mm (measured by Frame and Wheel)

Rim width: 23.0 mm (measured by Frame and Wheel)

Tire: not included

Over Lock Nut Dimension: 100 mm

Finish: black lettering grey banner on carbon

Frame and Wheel rating: Excellent condition

Rear

Brand: Zipp

Model: 202

Model year: 2012

Rim material: carbon VCLC

Rim shell material: carbon ABLC

Type: tubular

Series: Road

Rim serial number: 595255

Hub serial number: Z3101120431

Size: 700c

Rear wheel weight with skewer: 1 pounds 7 ounces / 660 g

Spoke count: 24

Spokes: steel bladed black external nipples

Lacing: 1-cross non drive side radial drive side

Hub: Zipp 188

Hub material: alloy

Skewer: Zipp stainless steel

Rim depth: 32.0 mm (measured by Frame and Wheel)

Rim width: 23.0 mm (measured by Frame and Wheel)

Tire: not included

Over Lock Nut Dimension: 130 mm

Free hub: Shimano

Free hub body width: 35 mm

Finish: black lettering grey banner on carbon

Frame and Wheel rating: Excellent condition

Frame and Wheel PAAS charge: $50.00

Wheel box deposit: $45.00

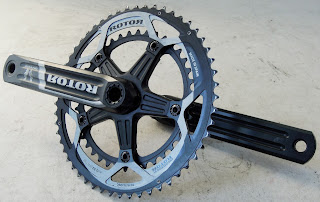

Rotor 3D Road alloy crank set 53T/39T 175mm double road round chain rings Cervelo GXP

Sold: $228 Buyer: USA

Rotor 3D Road alloy crank set 53T/39T 175mm double road round chain rings Cervelo GXP

Frame and Wheel is auctioning a Rotor 3D Road crank set on the Frame and Wheel eBay Store. The crank set was parted out from a performance road bike. The crank set features Rotor aluminum alloy spider and crank arms, Rotor 53T round “No-Q” outer chain ring, Rotor round “No-Q” 39T inner chain ring, compatibility with all 130 mm bolt center diameter chain rings, compatibility with all Shimano 24 mm diameter bottom brackets, Cervelo branding and 175 mm crank arms. The crank set is in good condition. It is clean and ready for installation. The chain rings are not bent. The teeth are not chipped or broken or worn into the shape of shark fins. The chain ring bolts are not stripped and not locked into place. None of the chain ring bolts are missing. The splines are undamaged. The crank arm fixing bolt is not missing. The crank arm cap bolt is not missing. The bolt holes for the pedals are not stripped or corroded. Frame and Wheel notes the following. There is wear on the the outer and inner chain ring teeth from the chain. There is light surface corrosion on the crank arms. Requires Rotor BB30 to BB24 convertor for use on BB30 frame set. The rings are round. They are not elliptical. A very nice and lightly used crank set with plenty of hours of use remaining available at an attractive valuation.

Specifications

Brand: Rotor

Model: 3D Road

Model year: 2010 estimated

Crank arm and spider material: aluminum alloy

Spline Interface: 14 splines Rotor proprietary

Chain rings: 53T Rotor road round No-Q ring 7075-T6 outer 39T Rotor No-Q round ring inner

Chain compatibility: 9 / 10 speed

Type: Double

Series: Road

Crank arm length: 175 mm

Bolt circle diameter: 130 mm

Spindle length: 110 mm integrated (end to end of spindle measured by Frame and Wheel)

Spindle diameter: 24 mm

Bottom bracket type: GXP

Q factor: 145 mm

Finish: Black / gray

Weight: 745 g

Frame and Wheel rating: Good condition

Frame and Wheel PAAS charge: $15.00

More information

BB30 compatibility

2010 SRAM Red dual control lever pair 10 speed double road

Sold: $267  Buyer: Canada

2010 SRAM Red dual control lever pair 10 speed double road

Frame and Wheel is auctioning a pair of SRAM Red dual control levers on the Frame and Wheel eBay Store. The levers were parted out from a road bike. The levers feature carbon levers, Double Tap shifting and SRAM Red design. The levers are in very good condition. They are clean and ready for installation. The Double Tap shifting mechanisms work properly. The brake levers move properly. The handlebar clamps are not missing. The handle bar clamp bolts are not stripped. The levers are not bent or cracked. The hoods are not torn. Frame and Wheel notes a 3 mm x 2 mm abrasion on the handle of the right shifter. A very nice and effectively new pair of SRAM Red shifters ready to return to the road.

Specifications

Brand: SRAM

Group: Red

Series: Road

Year: 2010

Speed (R): 10 speed

Speed (L): Double

Serial number (R): 19T00036889

Serial number (L): 19T00052252

Fixing bolt diameter range: 22.1 mm to 22.3 mm

Weight: 298 g / 149 g each

Finish: black / silver

Frame and Wheel rating: Very good condition

Frame and Wheel PAAS charge: $20.00

2012 Zipp 900 Tubular disc wheel 700c Zipp 182 hub Zipp SS skewer Beyond Black

Sold: $920 Buyer: USA

2012 Zipp 900 Tubular disc wheel 700c Zipp 182 hub Zipp SS skewer Beyond Black

Frame and Wheel is auctioning a 2012 Zipp 900 Tubular Disc wheel on the Frame and Wheel eBay Store. The wheel was purchased new in 2012. The wheel was used for racing only. It has never been crashed. It was parted out from a time trial bike. The owner is selling it because it is no longer needed. The wheel features ABLC dimpled surface, 20 mm rim width, Zipp 182 disc hub, Zipp stainless steel skewer, installed Shimano free hub body, large valve opening and “Beyond Black” stickers. The wheel as shown weighs 2 pounds and 3 ounces (1.0 kg). The serial number on the rim reads 617674. No Zipp decals for valve hole included. There are 45 images of the wheel set at Frame and Wheel’s Flickr page. Please take a look. Please see the Frame and Wheel website for more information about the company and the service.

Review of condition

The wheel is in very good condition. It is clean and ready to ride. There is no cracking, flexing, discoloration or flaking in the rim. There are no dents, punctures or scratches in the surface of the wheel. The wheel is true and round. The hub spins freely and the pawls are not loud. There is no play in the hub. There are no notches on the free hub body from a cassette. The skewer is straight and undamaged. The valve opening is undamaged. The stickers are on securely. Frame and Wheel notes the following. There is a light layer of glue on the rim. The braking surfaces of the rim show light wear.

Frame and Wheel conclusion

Frame and Wheel’s view is that a Zipp 900 Tubular disc wheel is a necessary tool for any road cyclist or triathlete who is serious about improving his or her performance in the race against the clock. This Zipp Disc 900 is in very good condition and shows immaterial signs of wear. It has many hours of racing remaining in its carbon rims. The new owner of this wheel will relish the distinctive sound that a disc wheel makes when at speed and the new voice it provides to any time trial bicycle. An excellent opportunity to obtain an effectively new disc wheel that will inspire higher levels of commitment and dedication..

Rear

Brand: Zipp

Model: 900 Tubular

Model year: 2012

Rim material: carbon

Rim shell: carbon ABLC / VCLC construction

Series: road / track

Type: tubular

Serial number: 617674

Size: 700c

Weight with skewer: 2 pounds 3 ounces / 1.0 kg

Hub: Zipp 182 disc hub

Skewer: Zipp stainless steel

Rim width: 20 mm (outside to outside measured by Frame and Wheel)

Tire: not included

Over Lock Nut Dimension: 130 mm

Finish: Black lettering on black background “Beyond Black”

Free hub body: Shimano installed

Free hub body length: 34 mm

Valve opening: 55 mm x 28 mm

Frame and Wheel rating: Very good condition

Frame and Wheel Product Analysis and Service: $50.00

Wheel box deposit: $25.00

Zipp 303/404 carbon alloy clincher wheelset 700c 18/20 spoke Zipp 88/188 hub Ti skewer

Sold: $901  Buyer: Australia

Zipp 303/404 carbon alloy clincher wheelset 700c 18/20 spoke Zipp 88/188 hub Ti skewer

Frame and Wheel is auctioning a Zipp 303/404 wheel set on the Frame and Wheel eBay Store. The wheels are from an individual’s inventory of cycling equipment. They were used for training. They have been in storage. They have never been crashed. The owner is selling them because they are no longer used. The wheels feature Zipp 88 front hub and Zipp 188 rear hub, 45 mm front rim depth and 58 mm rear rim depth, 20 mm rim width, adjustable hubs, Zipp titanium skewers and white on silver banner Zipp lettering. The wheels as shown weigh 3 pounds 14 ounces (1.73 kg). Base tape included. There are 45 images of the wheel set at Frame and Wheel’s Flickr page. Please take a look. Please see the Frame and Wheel website for more information about the company and the service.

Review of condition

The wheels are in good condition. They are clean and they are ready to ride. The hubs spin smoothly and freely. The spokes are tight and straight. The rims are round and the wheels are true. There is no lateral or vertical variation in the rims when placed in a truing stand. There is no flexing, flaking or discoloration in the carbon rim or the carbon shell. There are no notches in the free hub body splines from a cassette. There are no cracks in the hub bodies. There is no play in the hubs. There are no cracks in the flanges of the hubs. There is no corrosion on the spokes, the nipples or on the skewers. The stickers are not peeling off. Frame and Wheel notes the following. There is a 1 mm x 5 mm crack at the valve opening on the front wheel. The rims show wear from brake pads.

Frame and Wheel conclusion

Frame and Wheel’s view is that this Zipp 303 / 404 wheel set will make and excellent choice for the cyclist or triathlete who seeks durable, practical and aero wheels for training and racing. Despite some signs of wear, the wheels are in good condition and have many hours of riding remaining in their aluminum alloy rims and and carbon rim walls. These wheels will change the voice of any road bike and will allow the new owner to experience aero rims with the convenience of clincher tires. A great opportunity to obtain one of Zipp’s most universal offerings.

Specifications

Front

Brand: Zipp

Model: 303

Model year: 2010

Rim material: 6061-T6 aluminum alloy

Rim shell material: carbon ABLC

Series: road

Type: clincher

ETRTO: 622 x 13C

Rim serial number: not given

Hub serial number: 088 10 0900263

Size: 700c

Weight with skewer: 1 pound 12 ounce / 780 g

Spoke count: 18

Spokes: steel bladed silver external nipples

Lacing: radial

Hub: Zipp 88 alloy

Skewer: Zipp titanium

Rim depth: 45.0 mm (measured by Frame and Wheel)

Rim width: 19.0 mm (measured by Frame and Wheel)

Tire: not included

Base tape: Specialize plastic

Over Lock Nut Dimension: 100 mm

Finish: white lettering silver banner on carbon

Frame and Wheel rating: Good condition

Rear

Brand: Zipp

Model: 404

Model year: 2011

Rim material: 6061-T6 aluminum alloy

Rim shell material: carbon

Type: clincher

ETRTO: 622 x 13C

Series: Road

Rim serial number: not given

Hub serial number: 188 11 158 0154

Size: 700c

Rear wheel weight with skewer: 2 pounds 2 ounces / 950 g

Spoke count: 20

Spokes: steel bladed silver external nipples

Lacing: 1-cross non drive side radial drive side

Hub: Zipp 188

Hub material: alloy

Skewer: Zipp Titanium

Rim depth: 58.0 mm (measured by Frame and Wheel)

Rim width: 19.0 mm (measured by Frame and Wheel)

Tire: not included

Base tape: Mavic nylon

Over Lock Nut Dimension: 130 mm

Finish: white lettering silver banner on carbon

Frame and Wheel rating: Good condition

Frame and Wheel PAAS charge: $40.00
