1984 Univega Sportour 47cm steel road bike 6 speed Suntour ARX Dia-Compe brakes Araya wheels brown

Sale pending on Frame and Wheel eBay Store

Vintage 1984 Univega Sportour 47cm steel road bike 6 speed Suntour Dia-Compe Sunshine Araya Miyata

Frame and Wheel is auctioning a vintage 1984 Univega Sportour steel road bike on the Frame and Wheel eBay Store. The bicycle was purchased new at Northeast Bikes and Skies in Saugus, Massachusetts in the mid 1980s. It was used recreationally by its original owner until it was placed in storage in a dry basement, where it has been for more than fifteen years. The owner is selling the bicycle because he no longer rides it and would like to use the proceeds to upgrade his existing bicycle. The bicycle has never been crashed. It is has always been stored indoors in a dry location. The bicycle features chromoly double butted frame tubes, painted lettering, original rainbow sticker, crafted lugs, adjustable rear drop-outs, front and rear pannier eyelets, chain-hanger on the drive-side seat stay, two water bottle cage mounts, down-tube shifting, external cabling, Cat-Eye reflectors, 1983 Suntour ARX front and rear derailleurs, 1982 Sugino GT crank set, 1983 Dia-Compe 400 brake set, 1982 Sunshine Gyromaster hubs, Araya rims, original Benotto handle bar tape and Japanese provenance (the frame set was made in Japan by third party contract manufacturer and bike brand, Miyata). The bicycle as shown weighs 24 pounds (10.9 kg). The serial number on the bottom of the bottom bracket shell reads L285210. The serial number on the front fork reads TM 1258. Pedals are included. There are 80 images of the item at Frame and Wheel Auction Services Please take a look.

Review of condition

The bicycle is in good condition and it is ready to ride. It is clean and shows only light signs of wear. There are no dents, bends or cracks in the frame or fork. There are no bulges or bubbling in the finish anywhere on the frame set. There is no wear on the bottom of the down tube on the back of the seat tube or on the inside faces of the chain stays. The rear drop outs are in alignment with the center line of the frame. The rear derailleur hanger is straight and undamaged. The front fork is not bent and the drop out faces are parallel to each other. The handle bars are not bent. There is no corrosion in the head set and the races and bearings are clean and running smoothly. There is no play in the bottom bracket. There are no cracks in the cables and the shifting is smooth and complete. The brakes work properly and there is 10 mm of brake pad. The wheels are round and spinning properly. The spokes are tight and straight. The tires hold pressure.

Frame and Wheel notes the following. There is a 5 x 20 mm scratch on the non-drive side down tube on the “E” in Univega. There is a 2 x 10 mm scratch on the Univega logo on the head tube. There is a 3 x 35 mm imperfection in the finish on the drive-side top tube. There is a 3 x 10 mm imperfection in the finish on the drive-side top tube near the intersection with the head tube. There is corrosion on the underside of the fork crown. There is corrosion on the underside of the seat. There is wear around the front and rear dropouts.  There is wear on the braking surfaces of the rims. The rear wheel is slightly out of true. The bearings in the front and rear hubs are running roughly. The chain measures 0.75 on the chain wear tool. The sidewall on the front tire is dry and should be replaced soon. There is something loose inside the front fork. The front fork has no safety tabs. The bar tape is slipping off in places. Frame and Wheel carefully and in good faith inspected this wheel, but cannot guarantee that every imperfection has been spotted.

Frame and Wheel conclusion

Frame and Wheel’s view is that this bicycle will suit the smaller rider who is comfortable riding classic bicycles and who seeks the zen of 6-speed down-tube shifting. It will also make a very nice and perhaps more suitable addition to a vintage bicycle collection: the components are original specifications, the frame has a distinctive Japanese provenance and the bicycle is an excellent example of Univega’s touring models form the 1980s. Frame and Wheel notes that it is unusual to find classic touring bicycles in good condition, as their lower price point makes it easier for the owner to relegate them to the garage and a lifetime of neglect. This scenario did not play out with this bicycle and thus the offering represents an excellent opportunity to obtain a unique, healthy and charming bicycle at an excellent valuation.

For more information about vintage bicycles, please see this link:

Vintage Trek Bikes- Information on Steel Road Bicycles made by the Trek Bicycle Corporation, bike

Specifications:

Brand: Univega

Model: Sport Tour

Model year: 1984

Material: Chromoly Double Butted frame tubes

Frame design: traditional

Front fork: Mangalight fork

Front fork serial number: TM 1258

Seat post: Sakae Ringo Laprade 26.8 mm April 1984

Serial number: L285210

Size:  47.0 cm 18.5 inches

Color: Charcoal gray with silver lettering

Wheel size: 700c

Frame and Wheel rating: Good condition

Following measurements are by Frame and Wheel

Total weight with wheels: 24 pounds (10.9 kg)

Total weight without wheels: 16 pounds 5 ounces (7.4 kg)

Front wheel weight: 3 pounds (1.4 kg)

Rear wheel weight: 4 pounds 11 ounces (2.1 kg)

Center of BB to top of seat tube: 47.0 cm

Effective top tube: 50.5 cm (c-c)

Seat post length from bottom to center rails: 19.5 cm

Stand over height from middle of top tube: 73.0 cm

Bottom bracket height: 28.0 cm

Head tube length: 9.5 cm

Chain stay length: 42.0 cm

Front center: 58.0 cm

Frame set and group

Handlebars: Sakae Ringo Custom Road Champion 37.5 cm (c-c) 26.0 mm clamp diameter.

Stem: Sakae Ringo  6.5 cm alloy Angle: zero (90 degrees) 26.0 mm handle bar clamp diameter

Headset: Nova Tange 25.4 x 24T threaded external cups

Seat post: Sakae Ringo LaPrade 26.8 mm

Front fork: Mangalight fork

Steer tube: one inch steel

Steer tube length: 130 mm

Bottom bracket: Sugino English thread cups 1.370 ” x 24TPI

Crank set: 1982 Sugino GT 52T / 42T 165 mm crank arms

Drop outs: steel horizontal (R) steel vertical (F)

Rear derailleur hanger: integrated non replaceable

Front derailleur hanger: clamp-on

Cabling: external runs top of bottom bracket shell; runs on top of drive-side chain stay for rear derailleur.

Brakes: Dia-Compe 400 GX dual pivot caliper with quick release December 1983

Brake pads: Dia-Compe

Brake levers: Dia-Compe

Shifters: Suntour Symmetric

Front derailleur: 1983 Suntour ARX clamp-on

Rear derailleur: 1983 Suntour ARX

Pedals: MKS AR-1

Cassette: 1983 Suntour 14-28 (14, 16, 18, 21, 24, 28)

Chain: ARR

Saddle: Selle Italia with Univega logo

Water bottle cage: not included

Bar tape: Benotto plastic grey silver finish

Wheels

Wheel set: Araya alloy

Wheel size: 700c

Rim type: clincher

Rim depth: 13 mm

Spokes: straight gauge F & R

Nipples: External

Hubs: 1982 Sunshine Gyromaster F (36) R (36)

Skewers: Sunshine

Tires: Univega High Performance 700c x 20 mm (F) Cycle Pro 700c x 25 Touring Skin  (R)

3T Dorico Team carbon alloy seat post 27.2mm diameter road black/red

Sold: $77

3T Dorico Team carbon alloy seat post 27.2mm diameter road black/red

Frame and Wheel is auctioning a 3T Dorico Team seat post on the Frame and Wheel eBay Store. The seat post is excess parts inventory from an IBD. The seat post was original equipment on a new road bicycle and was switched out during a bike fitting. It has been in storage and never used. The seat post features a carbon post, double bolt seat clamp, alloy head, light weight and black / red finish. The seat post is in very good condition. The post is clean and ready for use. It is not cut, cracked or scratched. There is no corrosion in the seat clamp or the bolts and no seat clamp parts are missing. Frame and Wheel notes the following. There is 3 mm x 10 mm flaking in the finish on the right side of the post. A very nice and effectively new seat post available at a compelling valuation.

Specifications

Brand: 3T

Model: Dorico Team

Model year: 2010 + / -

Seat clamp type: double bolt alloy

Seat cradle dimension: 52 mm x 44 mm

Post material: carbon

Head material: alloy

Weight: 210 g

Offset: 30.0 mm

Post diameter: 27.2 mm

Length: 350 mm (end to center rails)

Finish: Black / red

Frame and Wheel rating: Very good condition

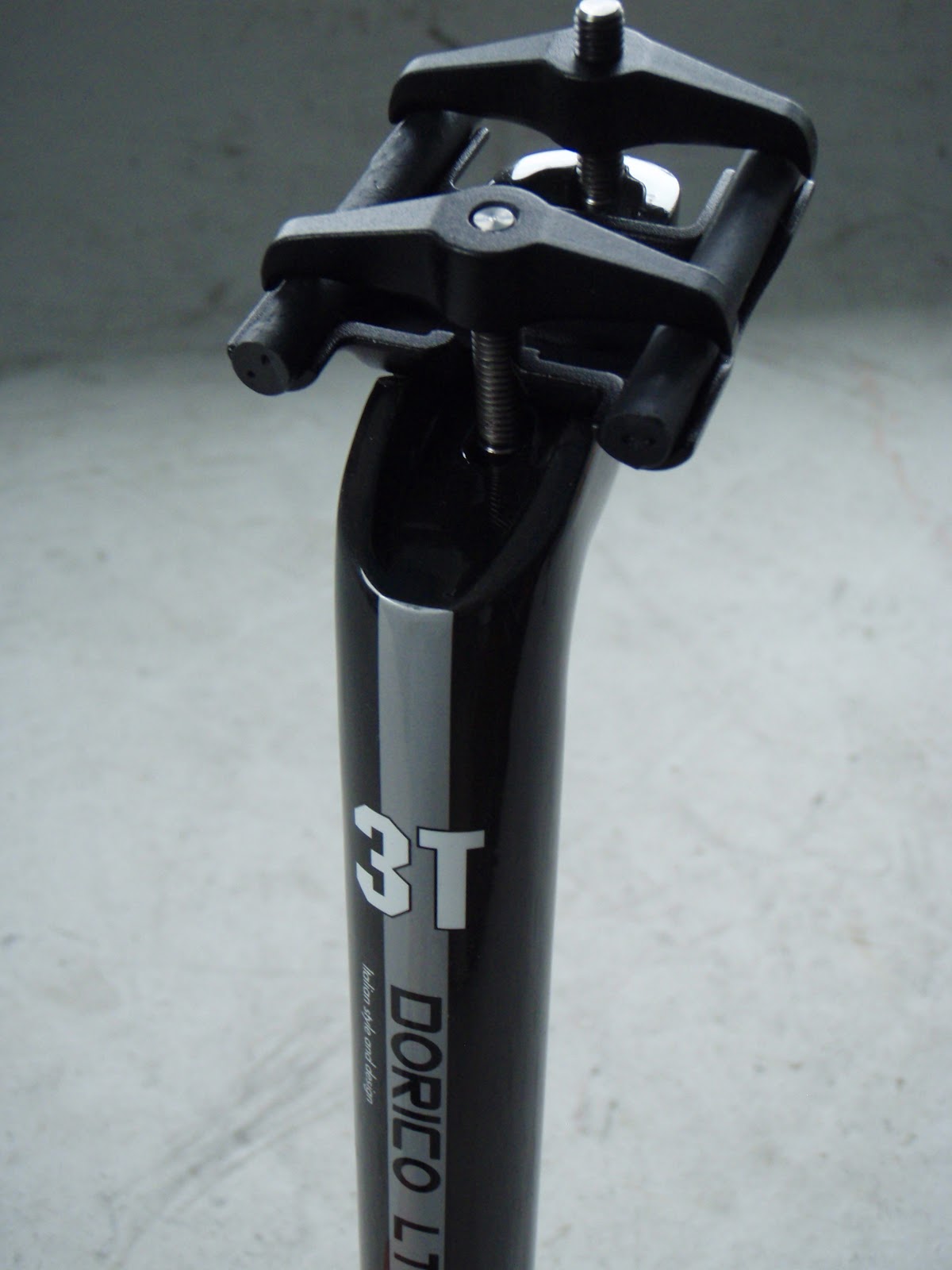

3T Dorico LTD carbon seat post 27.2mm diameter road black/gray

Sold: $102

3T Dorico LTD carbon seat post 27.2mm diameter road black/gray

Frame and Wheel is auctioning a 3T Dorico LTD seat post on the Frame and Wheel eBay Store. The seat post is excess parts inventory from an IBD. The seat post was original equipment on a new road bicycle, but was switched out during a bike fitting and placed in storage. It has never been used. The seat post features a full carbon post and head, a double bolt seat clamp and light weight. The seat post is in very good condition. The post is clean and ready for use. It is not cut, cracked or scratched. There is no corrosion in the seat clamp or the bolts and no seat clamp parts are missing. Frame and Wheel notes that the seat post shows light wear from having been installed and removed. A very nice, very light and effectively new seat post available at a compelling valuation.

Specifications

Brand: 3T

Model: Dorico LTD

Model year: 2010 + / -

Seat clamp type: double bolt alloy

Seat cradle dimension: 52 mm x 44 mm

Post material: carbon

Head material: carbon

Weight: 180 g

Offset: 30.0 mm

Post diameter: 27.2 mm

Length: 315 mm

Finish: Black / gray

Frame and Wheel rating: Very good condition

Look Keo Aero Blade carbon pedals pair black

Sold: $175

Look Keo Aero Blade carbon pedals pair black

Frame and Wheel is auctioning a pair of Look Blade Aero carbon pedals on the Frame and Wheel eBay Store. The pedals are spare parts inventory from an IBD. They have been installed and used and have been in storage. The pedals are in good condition. They are clean and ready for use. The spindles are not bent and the pedals spin freely and smoothly. The threads are not stripped. The carbon body is not cracked. There is no evidence of a crash on the edges of the pedal body. Frame and Wheel notes the following. The base plates show wear. There are light abrasions on bottom of the left pedal body. A pair of very light and aero pedals with plenty of hours of use still remaining.

Specifications

Brand: Look

Model: Keo Blade Aero

Model year: unknown

Finish: Black

Weight: 230 g pair

Thread: 9/16 inch

Body material: composite

Spindle: steel

Frame and Wheel rating: Good condition

New CycleOps Power Tap Pro Cervo CPU+ wireless yellow ANT+

Sold: $61

New CycleOps Power Tap Pro Cervo CPU+ wireless yellow ANT+

Frame and Wheel is auctioning a CycleOps Power Tap Cervo CPU on the Frame and Wheel eBay Store. The CPU is excess inventory from an IBD. The CPU features ANT+ wireless protocol and compatibility with SLC+, SL+, Pro+ and Elite+ hubs. The CPU is in very good condition. It has never been used. It is clean and ready for use. The body is not cracked or scratched. The screen is not cracked or scratched and it is covered with its original protective material. The pins are not bent. There is no corrosion on the pins. The CPU scrolls through all of its various pages. The batteries are live. Frame and Wheel notes that the bottom of the CPU shows some smudges from bicycle grease. No hub, heart rate monitor band, software or any complimentary accessory included. CPU only! A great opportunity to obtain a back up CPU in case the one you have falls off during a race.

Power meter specifications

Brand: CycleOps

Model #: CPU +

FCC ID: T8P-SL2P401

IC: 6459A-SLP401

Type: Wireless ANT+

Color: Yellow

Heart rate: Yes

Cadence: Yes

GPS: No

Frame and Wheel rating: Very good condition

FSA Omega Compact alloy handlebars 44 cm (c-c) 31.8mm clamp diameter

Sold:$12.50

FSA Omega Compact alloy handlebars 44 cm (c-c) 31.8mm clamp diameter

Frame and Wheel is auctioning FSA Omega Compact handlebars on the Frame and Wheel eBay Store. The handlebars are spare parts inventory from an IBD. The bars were switched out of a new road bicycle during a bike fitting session and were never used. They have been in storage. The handlebars feature double grooves for running brake and shifter cables under the tape, an extended oversized center for 31.8 mm clip-on bars, round bar tops, rounded ergonomic design and shallow drops. The handlebars are in very good condition. They are clean of bar tape adhesive and ready to install. They are not bent or cracked. There are no scratches around the brake mounts. There is no corrosion anywhere on the bars. Frame and Wheel notes the following. There is wear around the center of the bars from the bar clamp. The bars measure 43 cm (c-c) at the hoods and 44 cm (c-c) at the drops. An effectively new and very nice set of handle bars available at a compelling valuation.

Specifications

Brand: FSA

Model: Omega Compact

Finish: Anodized black

Design: traditional bar and stem

Year: 2010 + / -

Material: AL 6061

Bend: Ergonomic

Weight: 310 g

Width: 44 cm (c-c)

Drop: 125 mm

Reach: 80 mm

Handlebar clamp: 31.8 mm

Frame and Wheel rating: Very good condition

Ritchey WCS 4Axis alloy stem 100 mm 31.8mm bar clamp black

Sold: $19

Ritchey WCS 4Axis alloy stem 100 mm 31.8mm bar clamp black

Frame and Wheel is auctioning a Ritchey WCS 4Axis stem on the Frame and Wheel eBay Store. The stem is spare parts inventory from an IBD. The stem is in good condition. It is clean and ready for use. There are no cracks on the stem or on the face plate. There is no corrosion in the bolts. All the bolts and washers are included. Frame and Wheel notes the following: There is wear on the stem from a road computer attachment. There is wear on the inside of the bar clamp and the steer tube clamp. A reliable and practical stem that has many hours of use use remaining.

Specifications

Brand: Ritchey

Model: WCS 4Axis

Length: 100 mm

Rise: 84 / 6 degrees

Stem material: alloy

Face-plate material: alloy

Bolts: alloy

Weight: 110 g

Finish: black

Steer tube diameter: 1 1/8 inch

Bar clamp diameter: 31.8 mm

Collar stack height: 42 mm measured by Frame and Wheel

Face plate: alloy four bolts

Frame and Wheel rating: Good condition

Ritchey WCS Carbon Matrix 4Axis alloy carbon stem 130 mm 31.8mm bar clamp black

Sold: $51

Ritchey WCS Carbon Matrix 4Axis alloy carbon stem 130 mm 31.8mm bar clamp black

Frame and Wheel is auctioning a Ritchey WCS Carbon Matrix 4Axis stem on the Frame and Wheel eBay store. The stem is spare parts inventory from an IBD. The stem was original equipment on a new road bicycle and was switched out during a bike fitting. It has been in storage. The stem is in very good condition. It is clean and ready for use. There are no scratches or cracks on the stem or on the face plate. There is no corrosion in the bolts. All the bolts and washers are included. There is no wear on the inside of the bar clamp or inside the steer tube clamp. A very light and strong stem that will suit the taller rider.

Specifications

Brand: Ritchey

Model: WCS Carbon Matrix 4Axis

Model year: 2007

Length: 130 mm

Rise: 84 / 6 degrees

Stem material: alloy with 3k carbon weave finish

Face-plate material: alloy with 3k carbon weave finish

Bolts: alloy

Weight: 130 g

Finish: black

Steer tube diameter: 1 1/8 inch

Bar clamp diameter: 31.8 mm

Collar stack height: 42 mm measured by Frame and Wheel

Face plate: alloy four bolts

Frame and Wheel rating: Very good condition

3T Dorico Team carbon alloy seat post 27.2mm diameter road black/white

Sold: $53

3T Dorico Team carbon alloy seat post 27.2mm diameter road black/white

Frame and Wheel is auctioning a 3T Dorico Team seat post on the Frame and Wheel eBay Store. The seat post is excess parts inventory from an IBD. The seat post was original equipment on a new road bicycle and was switched out during a bike fitting. It has been in storage and never used. The seat post features a carbon post, double bolt seat clamp, alloy head, light weight and black / white finish. The seat post is in very good condition. The post is clean and ready for use. It is not cut, cracked or scratched. There is no corrosion in the seat clamp or the bolts and no seat clamp parts are missing. Frame and Wheel notes that the post shows some light wear from having been installed and removed. A very nice and effectively new seat post available at a compelling valuation.

Specifications

Brand: 3T

Model: Dorico Team

Model year: 2010 + / -

Seat clamp type: double bolt alloy

Seat cradle dimension: 52 mm x 44 mm

Post material: carbon

Head material: alloy

Weight: 210 g

Offset: 30.0 mm

Post diameter: 27.2 mm

Length: 350 mm (end to center rails)

Finish: Black / white

Frame and Wheel rating: Very good condition

2010 Fizik Arione Tri 2 time trial triathlon seat black/red

Sold: $55

2010 Fizik Arione Tri 2 time trial triathlon seat black/red

Frame and Wheel is auctioning a Fizik Arione Tri 2 seat on the Frame and Wheel eBay Store. The seat is excess inventory from an IBD. The seat was original equipment on a new time trial bicycle. It was switched out during a bike fitting session. The seat has never been used and it has been in storage. The seat is in very good condition. It is clean and ready for use. The rails are not bent, cracked or corroded. There is no wear on the sides or the top of the seat. The rails are firmly mounted on the shell. Frame and Wheel notes that the rails show some wear from its original installation. A very nice seat that will go well on a time trial bicycle.

Specifications

Brand: Fizik

Model: Arione Tri 2

Model year: 2010

Weight: 270 g (weighed by Frame and Wheel)

Covering: Synthetic

Length: 305 mm

Width: 130 mm

Rails: alloy

Length of rails: 90 mm

Rail width: 45 mm c-c

Finish: Red / Black

Frame and Wheel rating: Very good condition

New in box Shimano Dura-Ace CS-7700 9 speed cassette 11-23

Sold: $59

New in box Shimano Dura-Ace CS-7700 9 speed cassette 11-23

Frame and Wheel is auctioning a new Shimano Dura-Ace CS-7700 9 speed cassette on the Frame and Wheel eBay Store. The cassette is excess inventory from an IBD. The cassette has never been installed or used. It has been in storage. The cassette is in excellent condition. It is in its original packaging. It is clean and there is no corrosion. All the sprockets and washers and the cap are included. An excellent and rare opportunity to obtain a new 9 speed cassette at a compelling valuation.

Specifications

Brand: Shimano

Group: Dura-Ace

Model: CS-7700

Gearing: 11, 12, 13, 14, 15, 17, 19, 21, 23

Weight: 160 g

Frame and Wheel rating: Excellent condition

New Shimano Dura-Ace SL-BS77 bar end shifting lever pair 9 speed double/triple

New Shimano Dura-Ace SL-BS77 bar end shifting lever pair 9 speed double/triple

Frame and Wheel is auctioning a new Shimano Dura-Ace SL-BS77 bar end shifting lever package on the Frame and Wheel eBay Store. The shifters are excess inventory from an IBD. The shifters have never been installed or used. The shifters feature compatibility with 8 speed derailleur (RD-7400) and compatibility with triple front chain ring. Shimano cables and cable housing, cable stops and cable guides included. The shifters are in excellent condition. Original unopened packaging.  Instructions included. These shifters have a bright future on a touring bike or a nine speed time trial bike.

Specifications

Brand: Shimano

Group: Dura-Ace 7700

Model: SL-BS77

Speed (R): 9 speed

Speed (L): Double / triple compatible

Weight: 70 g each / 140 g total

Finish: Silver / gray

Frame and Wheel rating: Excellent condition

Ritchey Pro Logic alloy handlebars 42 cm (c-c) 31.8mm clamp diameter road

Sold: $7

Ritchey Pro Logic alloy handlebars 42 cm (c-c) 31.8mm clamp diameter road

Frame and Wheel is auctioning Ritchey Pro Logic road handlebars on the Frame and Wheel eBay Store. The handlebars are from the spare parts inventory of an IBD. The bars were switched out of a new road bicycle during a bike fitting session and were never used. They have been in storage. The bars feature ergonomic bend, oversized center, a single groove for running brake and shifting cables under the bar tape and medium drop. The bars are in very good condition. They are clean of bar tape adhesive and ready to install. They are not bent or cracked. There are no scratches around the brake mounts. There is no corrosion anywhere on the bars. Frame and Wheel notes the following. There is wear around the center of the bars from the bar clamp. The lettering around the center of the bars has been partially worn off. Effectively new and excellent quality handle bars available at a compelling valuation.

Specifications

Brand: Ritchey

Model: Pro Logic

Finish: Black

Design: traditional bar and stem

Year: 2010 + / -

Material: AL 7075

Bend: Ergonomic

Weight: 250 g

Width: 42 cm (c-c)

Drop: 132 mm

Reach: 78 mm

Handlebar clamp: 31.8 mm

Frame and Wheel rating: Very good condition

New in box Shimano Dura-Ace bottom bracket BB-7700 Octolink (110mm axle)

Sold: $84

New in box Shimano Dura-Ace bottom bracket BB-7700 Octolink (110mm axle)

Frame and Wheel is auctioning a new in box Shimano Dura-Ace BB-7700 bottom bracket on the Frame and Wheel eBay Store. The item is excess inventory from an IBD.  The bottom bracket is in excellent condition. The threads are not stripped. There is no corrosion. Original box and instruction included. An excellent opportunity to obtain a high quality bottom bracket at a fine valuation.

Specifications

Brand: Shimano

Group: Dura-Ace

Model: BB-7700

Bearing type: sealed cartridge

Threading: English (1.37 ” diameter x 24 threads per inch)

Axle length: 110 mm

Shell length: 68 mm

Axle type: Octolink V1 8-splines

Weight: 170 g

Frame and Wheel rating: Excellent condition

HED Flip-Lite carbon aerobar s-bend extensions (26.0 mm clamp diameter)

Sold: $92

HED Flip-Lite carbon aerobar s-bend extensions (26.0 mm clamp diameter)

Frame and Wheel is auctioning Flip-Lite carbon aerobar s-bend extensions on the Frame and Wheel eBay Store. Frame and Wheel auctioned this item earlier this month, but incorrectly described the model and the bar clamp diameter. These bars are the HED Flip-Lite Aerobar extensions and the bar clamp diameter is 26.0 mm. They sold for $115.00 and were returned.

The extensions are from the 2011 inventory of spare parts of an IBD. The extensions were cut and used for about 100 miles before being returned to the IBD and switched out. They are in very good condition. They are clean and show only light signs of wear. The carbon extensions and arm rests are not cracked or flaking. There is no corrosion on the bolts or in the bolt holes. The velcro adheres securely to the arm rests. The foam pads are clean and adhere securely to the velcro. Frame and Wheel notes that there are light abrasions on the base of the extensions from installation and removal in the clamp. The bars feature arm rests that can be “flipped” upwards when climbing. A very light pair of extensions available at an excellent valuation.

Specifications

Brand: HED

Model: Flip Lite

Weight: 120 g each or 240 total (weighed by Frame and Wheel)

Extension material: carbon

Clamp material: alloy

Bend: S-bend

Extension length: 230 mm (end to center with extensions fully inserted))

Extension diameter: 22 mm

Handle bar clamp: 26.0 mm

Arm rests: carbon

Pads: foam

Shifters: na

Finish: black

Frame and Wheel rating: very good condition

SRAM S500 alloy crank set 39T/53T 170mm double 10-speed GXP cupset

Sold: $49

SRAM S500 alloy crank set 39T/53T 170mm double 10-speed GXP cupset

Frame and Wheel is auctioning a SRAM S500 crank set with a GXP cup set on the Frame and Wheel eBay Store. The cranks were original equipment on a new bike purchased in 2010. The cranks were switched out for compact cranks in August 2010 and have an estimated 1,500 miles of use. They have been in storage ever since. The cranks feature integrated bottom bracket, road gearing and black finish. The cup set is new and has never been installed. The cranks are in good condition. They are clean and normal wear. The chain rings are not bent and the teeth are not chipped or broken. There is no wear on the outside of the crank arms. All the chain ring bolts are included and they are not stripped. The bolt holes for the pedals are not stripped. There is no wear on the spindle and the splines are not stripped or damaged. Frame and Wheel notes the following:  The chain ring teeth show some wear. The inside of the big chain ring shows some wear. There is corrosion on the non-drive side crank arm bolt. A very lightly used crank set with plenty of hours of use remaining. Original SRAM packaging.

Specifications

Brand: SRAM

Model: S500

Crank arm and spider material: AL-7050 TV

Spline Interface: 10 splines

Chain rings: 53T / 39T AL-7050 T-6

Crank arm length: 170 mm

Bolt circle diameter: 130 mm

Spindle length: 125 mm + / - integrated (end to end of axle measured by Frame and Wheel)

Spindle diameter: 22 mm

Cup set: GXP 68 mm

Cup set weight: 120 g

Threading: English

Crank set including cup set: 920 g

Finish: Black

Frame and Wheel rating: Good condition

Shimano Ultegra FC-6700 B-type crank set 39T/53T 172.5mm double 10-speed

Sold: $119

Shimano Ultegra FC-6700 B-type crank set 39T/53T 172.5mm double 10-speed

Frame and Wheel is auctioning a Shimano Ultegra standard road crank set on the Frame and Wheel eBay Store. The crank set was originally installed on a Trek Speed Concept triathlon bicycle that was purchased new in April 2011. The crank set was switched out for compact cranks with shorter arms in May 2011. The crank set has been in storage ever since and the owner is selling them because she does not need them. The crank set features standard road gearing, a hollow outer chain ring and the new gray finish. The crank set is in very good condition. It is clean and shows only light wear. The chain rings are not bent and the teeth are not chipped or broken.  All the chain ring bolts and crank arm fixing bolts, caps and washers are included. The bolt holes for the pedals and the crank arms are not stripped. There is no corrosion anywhere on the cranks set. The splines are not stripped or damaged. Frame and Wheel notes the following. There is some wear on the axle. There are two 1 mm x 40 mm abrasions on the edge of the non-drive side crank arm. A rare and excellent opportunity to obtain very nice and effectively new cranks at a compelling valuation. Shimano packaging.

Specifications

Brand: Shimano

Group: Ultegra Hollowtech II

Model: FC-6700

Chain rings: 39T / 53T 10-speed B-type double

Bolt circle diameter: 130 mm

Crank arm length: 172.5 mm

Weight including non drive arm: 710 g

Material: alloy

Frame and Wheel rating: Very good condition

Shimano Ultegra Hollowtech II FC-6750 B-type compact crank set 34T/50T 172.5 mm double 10-speed

Sold: $170

Shimano Ultegra Hollowtech II FC-6750 B-type compact crank set 34T/50T 172.5 mm double 10-speed

Frame and Wheel is auctioning a Shimano Ultegra compact crank set on the Frame and Wheel eBay Store. The crank set was purchased new in May 2011 and installed on a time trial bicycle. The arms were too long and thus the crank set was switched out after one week. The crank set has been in storage ever since. The owner is selling the cranks because she does not need them. The crank set features compact gearing, a hollow outer chain ring and the new gray finish. The crank set is in very good condition. It is clean and shows only light wear. The chain rings are not bent and the teeth are not chipped or broken.  All the chain ring bolts and crank arm fixing bolts, caps, rings and washers are included. The bolt holes for the pedals and the crank arms are not stripped. The splines are not stripped or damaged. There is no corrosion anywhere on the cranks set. Frame and Wheel notes the following. The finish on the chain ring teeth has worn off. There is some wear on the axle. Compact cranks are like air conditioning: once you try them you rarely go back. These cranks are effectively new and will be very useful to have as a primary crank set or as a back up for mountainous stage races. A rare and excellent opportunity. Shimano packaging.

Specifications

Brand: Shimano

Group: Ultegra Hollowtech II

Model: FC-6750

Chain rings: 34T / 50T compact 10-speed B-type double

Bolt circle diameter: 110 mm

Crank arm length: 172.5 mm

Weight including non drive arm: 680 g

Material: alloy

Frame and Wheel rating: Very good condition

FSA SL-K Light crank set 53T/39T carbon cranks 170mm double FSA Mega Exo cupset

Sold: $85

FSA SL-K Light crank set 53T/39T carbon cranks 170mm double FSA Mega Exo cupset

Frame and Wheel is auctioning FSA SL-K Light crank set with a FSA Mega Exo cup set on the Frame and Wheel eBay Store. The crank set is from an IBD’s spare parts inventory and has about 3,000 miles of use. The crank set is in good condition. The chain rings are not bent and the teeth are not chipped or broken. The teeth do not resemble shark fins (which indicates excessive wear). The chain ring bolts can be loosened and are not stripped. The crank arms are not cracked or chipped. The bolt holes for the pedals have no corrosion and they are not stripped. The cartridge bearings in the cup set turn smoothly. The cup set threads are not stripped and there is no corrosion. Frame and Wheel notes the following. There is wear on the drive-side crank arm from a bootie. The finish on the chain rings has worn off. There is some wear on the inside of the outer chain ring from the chain. A nice crank set with many hours of use still remaining.

Specifications

Brand: FSA

Model: SL-K Light

Crank arm and spider material: carbon

Spline Interface: Mega Exo Light (12 splines)

Chain rings: 53T / 39T

Crank arm length: 170.0 mm

Bolt circle diameter: 130 mm

Spindle length: 120 + / - mm integrated (end to end of axle measured by Frame and Wheel)

Spindle diameter: 24 mm

Cup set: Mega Exo BB8681

Cup set weight: 100 g

Threading: English

Crank set including cup set: 750 g

Frame and Wheel rating: Good condition

2010 Mavic Cosmic Carbone SL wheel set alloy carbon clincher 700c 16/20 spoke

Sold: $712

2010 Mavic Cosmic Carbone SL wheel set alloy carbon clincher 700c 16/20 spoke

Frame and Wheel is auctioning a Mavic Cosmic Carbone SL wheel set on the Frame and Wheel eBay Store. The wheels were purchased new at Kennebunkport Bicycle in August 2010. They were used in one race in 2010 and one race in 2011. They were used for some training in 2011. The owner is selling them because she is training with power and would like to upgrade to race wheels that are built up with a power tap hub. The wheels have been in storage for most of 2011. They have never been crashed. They have always been stored indoors and they have had only one owner. The wheels with skewers weigh 4 pounds and 4 ounces (1,930 grams). The serial number on the front wheel reads C90413106 and the serial number on the rear wheel reads C90412961. Free hub body washer included. No tires or instruction manual included. There are 50 images of the wheel set at Frame and Wheel Auction Services. Please take a look.

Review of condition

The wheels are in very good condition. They are clean and they are ready to ride. There are no dents, bends or scratches in the alloy rims. There are no cracks, flaking or chips in the carbon shells. The stickers are clean and adhere properly. The axles are not bent. The rims are round and true and the spokes are tight and straight. The bearings are smooth and the wheels spin freely and quietly. The pawls are not excessively loud. There are no notches on the splines of the free hub body. There is no play in the hubs. The rim tape is clean and fresh. Frame and Wheel notes the following: There is a 15 x 40 mm abrasion on the drive-side carbon shell of the rear wheel from a transition zone scramble. There is a 20 mm abrasion on the face of a near-by spoke. The braking surfaces of the rims show some wear. There is light corrosion on some of the spokes. There is corrosion on the inside face of the quick release adjusting nut. There is corrosion on the rear wheel lock nut. Frame and Wheel carefully and in good faith inspected this item but cannot guarantee that every imperfection has been spotted.

Frame and Wheel conclusion

Frame and Wheel’s view is that these are very nice and very practical aerodynamic clincher wheels that will do very well for racing or fair weather training. The wheels are in very good condition: the bearings are silky smooth and the rims rock-solid straight and true, which indicates that these wheels have been hardly used at all. The 12K weave of the carbon shells and their 52 mm depth give the wheels a distinctive aero look and the black and yellow highlights of the Mavic logo is as compelling as ever. The wheels will suit the triathlete and the road cyclist who seek an aero edge without the work and the expense of deep dish carbon tubular wheels. An excellent opportunity to obtain first class wheels at first class valuation.

Specifications

Front

Brand: Mavic

Model: Cosmic Carbone SL

Model year: 2010

Rim material: Aluminum alloy 6000 series

Rim shell: 12k carbon weave

Type: clincher

Serial number: C90413106

ETRTO: 622 x 13C

Size: 700c

Weight with skewer: 1 pounds 15 ounces / 870 g

Spoke count: 16

Spokes: anodized steel black bladed internal brass nipples

Lacing: radial

Hub: Mavic aluminum body

Skewer: Mavic aluminum skewer

Rim depth: 52 mm

Rim width: 19 mm (o-o) Measured by Frame and Wheel

Tire: na

Over Lock Nut Dimension: 100 mm

Finish: nude carbon / black

Frame and Wheel rating: Very good condition

Rear

Brand: Mavic

Model: Cosmic Carbone SL

Model year: 2010

Rim material: Aluminum alloy 6000 series

Rim shell: 12k carbon weave

Type: clincher

Serial number: C90412961

ETRTO: 622 x 13C

Size: 700c

Weight with skewer: 2 pounds 5 ounces / 1,060 g

Spoke count: 20

Spokes: anodized steel black bladed internal brass nipples

Lacing: drive-side: 2-cross  non drive-side: radial

Hub: Mavic aluminum body

Skewer: Mavic aluminum skewer

Rim depth: 52 mm

Rim width: 19 mm (o-o) Measured by Frame and Wheel

Tire: na

Over Lock Nut Dimension: 130 mm

Finish: nude carbon / black

Free hub body: Shimano, SRAM

Frame and Wheel rating: Very good condition
