2006 Parlee Z3C 55cm ML carbon compact frame Reynolds fork Chris King headset nude

Sold: $2,315  Buyer: United Kingdom

006 Parlee Z3C 55cm ML carbon compact frame Reynolds fork Chris King headset nude

Frame and Wheel is auctioning a 2006 Parlee Z3C 55cm ML frame and fork on the Frame and Wheel eBay Store. The frame and the fork was purchased new directly from Parlee Cycles in the Spring of 2006 and in the presence of the man himself. It was built up and used primarily for fair weather training and recreation. It has never been crashed and it has always been stored inside finished space and transported inside a car. It was maintained by the owner. The owner is a masters category cyclist and he is selling the bicycle because he is upgrading to a new bike and would like to clear out some of the cycling equipment in his basement. The frame features a Reynolds carbon fork, a Chris King NoThreadSet headset, a Parlee adjustable carbon front front derailleur hanger “belt”, carbon woven lugs, carbon cable stops, titanium rear drop outs, wishbone seat stays and Parlee “Made in the USA” provenance. The frame and fork as shown weighs 3 pounds 7 ounces (1.57 kg). The serial number reads PCZ06C35053. The owner is 5 feet 10 inches with an inseam of about 33 inches. Seat post not included. There are over 80 images of the frame set here.  Please follow Frame and Wheel Auction Services link for more information about the service and other listings.

Review of condition

The frame and fork is in very good condition. It is clean and ready for build. There are no cracks, bulges, flexing or flaking that raise concerns about the structural integrity of the frame or the fork. The rear drop outs are in alignment with the the centerline of the frame and the rear derailleur hanger is straight and undamaged. It shows only light signs of wear on the back of the seat tube, the bottom of the down tube and inside the chain stays. The carbon cable stops are undamaged and clear of obstructions. The barrel adjusters work properly and are not missing any parts. The headset cartridge bearings move smoothly and quietly and are securely mounted in the cups. The steer tube is not cracked or flaking. The front fork has safety tabs. The race is mounted securely on the front fork and the headset is complete. There is no corrosion in the bottom bracket, on the crown race or in the water bottle bolts. Frame and Wheel notes the following. There is a 2 x 5 mm chip on the underside of the down tube. There are series of blemishes about 2 x 2 mm in size on the top side of the drive side chain stay. There is wear on the seat tube from the front derailleur clamp. There is wear along the edges of the bottom bracket shell. There is wear on the front and rear drop outs. Frame and Wheel notes that the top cover of the head set is very snug on the carbon steer tube.

Frame and Wheel conclusion

Frame and Wheel’s view is that this is a lightly used and well maintained frame set that still has many hours of training and racing remaining in its carbon fiber tubes and posts. It will make a fine and practical choice for the dedicated cyclist who wants to upgrade to something very light in a compact geometry. The frame is a clean slate and the new owner will have great fun building it up to meet his or her exact specifications and preferences. For example,with a set of carbon tubular wheels and a SRAM Red group set, this Z3C will be among the the lightest bikes on the road and could be a candidate for Parlee’s Facebook Wall. Regardless of the build, the resulting bicycle will have a beautiful and mature voice and will smack of great value, which will be an inspiration to the new owner and a point of pride for Mr. Parlee.

Specifications:

Brand: Parlee

Model: Z3C

Size: 55 cm (ML)

Color: Nude carbon with clear gloss coat

Frame material: carbon Parlee UD

Frame serial number: PCZ06C35053

Fork material: carbon

Fork model: Reynolds

Design: compact geometry / sloping top tube road

Wheel size: 700c

Frame and Wheel rating: Very good condition

Following measurements are by Frame and Wheel

Total weight: 1.570 kg / 3 pounds 7 ounces (frame and headset with sealed cartridges and seat collar: 1,200 g fork with star nut, spacer and cover: 370 g)

Center of BB to top of seat tube: 53.0 cm (c-t)

Effective top tube length: 55.5 cm (c-c)

Head tube length: 14.0 cm

Bottom bracket shell: 68 mm

Front fork length: 38.5 cm (from center of drop outs to crown race)

Following measurements are by Parlee

Actual seat tube: 48 cm

Top tube length: 56.0 cm

Head tube angle: 73.5 degrees

Seat tube angle: 73.0 degrees

Chain stay length: 41.0 cm

Bottom bracket drop: 7.0 cm

Fork rake: 4.3 cm

Standover height: 77.8 cm

Head tube length: 14.1 - 16.1 cm

Front center: 58.3 cm

Wheel base: 98.3 cm

More information about the Z3

Front fork

Brand: Reynolds Composites 07/MQC 1/12502

Model: UL Fork “Raw”

Year: 2006 + / -

Finish: nude carbon

Weight: 300 g

Front fork length: 38.5 cm

Steer tube serial number: 87066

Steer tube material: carbon

Steer tube diameter: 1 1/8 inch

Steer tube length: 23.0 cm (base of crown race to top) previously cut

Crown race diameter: 30 mm

Safety tabs: yes

Drop outs: Alloy

Brake type mount: caliper

Other specifications

Seat post: not included requires 27.2 mm diameter post

Seat post collar: Parlee custom alloy single bolt 37.0 mm

Seat clamp: na

Bottom bracket: English standard 68 mm (1.370 inch x 24 tpi)

Headset: Chris King NoThreadSet black for 1 1/8 inch steer tube 2 sealed cartridge bearings external cups

Spacers: carbon 25 mm (1 x 20 mm 1 x 5 mm)

Drop outs: rear: vertical titanium front: standard alloy

Rear derailleur hanger: titanium non replaceable

Front derailleur hanger: clamp on

Cabling: external

Rear fork spacing: 130 mm

Front fork spacing: 100 mm

Clear Your Gear pilot program

Frame and Wheel would like to test out the Clear Your Gear program with this transaction: Use the box in which you receive this frame set to send back your old frame set or any other unused or unwanted cycling equipment to Frame and Wheel Auction Services. Frame and Wheel Auction Services will auction your old items on your behalf and forward the proceeds to you net of a commission. This defrays the cost of your frame set, produces some cash for new items and reduces cycling equipment clutter in your home. Please advise Frame and Wheel if this is of interest to you and the pre-paid return postage sticker that will be enclosed and we can work out the details.

2008 Zipp 900 Disc tubular 700c Zipp 82 hub Ti skewer extra free hub body track axle

Sold: $1,135 Buyer: USA

2008 Zipp 900 Disc tubular 700c Zipp 82 hub Ti skewer extra free hub body track axle

Frame and Wheel is auctioning a 2008 Zipp 900 Disc tubular wheel on the Frame and Wheel eBay Store. The wheel was purchased new at Exeter Cycles in New Hampshire in 2009. The wheel was used only for racing time trials at a local time trial series in 2009 and 2010. It was used twice in 2011 and has been in storage since then. The wheel features ABLC dimpled surface, 20 mm rim width, an enlarged valve hole for easier tire inflation, a Zipp titanium skewer, an axle to adapt the wheel for track, an installed Shimano free hub body, a Campagnolo free hub body for use on a Campagnolo drive train and white silvery sticker finish. The wheel as shown weighs 2 pounds and 2 ounces (1.0 kg). The serial number on the rim reads 252754. No Zipp decals for valve hole included. There are 40 detailed images of the wheel in a slide show at Frame and Wheel Auction Services. Please scroll down to the bottom of the description to find the slide show.

Review of condition

The wheel is in very good condition. It is clean and ready to ride. There are no cracks, flexing or flaking in the rim. There are no dents, punctures or scratches in the surface of the wheel. The wheel is true and round. The hub spins freely and smoothly and the pawls are not loud. There is no play in the hub. The stickers are on securely. Frame and Wheel notes the following. The splines on the Shimano and Campagnolo hub show notch marks from a cassette. There is a 1 x 17 mm blemish on one of the Zipp stickers on the non-drive side of the wheel. The braking surface of the rim shows light wear. There is a light layer of old glue on the rim.

Frame and Wheel conclusion

Frame and Wheel’s view is that this wheel is the perfect solution for the cyclist who seeks to seriously improve his or her time trial performances in the future. The wheel is light, it is aerodynamic and it makes a noticeable difference when set up on a time trial bicycle. The wheel is in very good condition and with proper preparation it is ready to be glued up with a time trial tire and turned loose on the road. Frame and Wheel notes that the inclusion of a Zipp titanium skewer, an axle for optional track use and a Campagnolo free hub body is unusual and increases the value of this offering. The new owner of this wheel will relish the distinctive sound that a disc wheel makes when at speed and the new voice it provides to any time trial bicycle. A rare and excellent opportunity to obtain an effectively new wheel that will inspire higher levels of commitment and dedication to mastering the race against the clock.

Rear

Brand: Zipp

Model: 900 Disc

Model year: 2008

Rim material: carbon

Rim shell: carbon ABLC / VCLC construction

Type: tubular

Serial number: 252754

Size: 700c

Weight with skewer: 2 pounds 2 ounces / 1.0 kg

Hub: Zipp 182 disc hub

Skewer: Zipp titanium

Aero rim width: 20 mm (outside to outside measured by Frame and Wheel)

Tire: not included

Over Lock Nut Dimension: 130 mm

Finish: white lettering silver banner on carbon

Free hub body: Shimano installed Campagnolo included

Frame and Wheel rating: Very good condition

2008 Zipp 808 tubular carbon front wheel 700c 18 spoke Zipp 82 hub Ti skewer

Sold: $610 Buyer: United Kingdom

2008 Zipp 808 tubular carbon front wheel 700c 18 spoke Zipp 82 hub Ti skewer

Frame and Wheel is auctioning a 2008 Zipp 808 tubular front wheel on the Frame and Wheel eBay Store. The wheel was purchased new at Exeter Cycles in 2009. It was used on a time trial bicycle and only for racing in a local time trial series in 2009 and 2010. The wheel was used twice in 2011 and has been in storage. The owner is a masters category cyclist and the only owner of this wheel. He is selling the wheel because he no longer races time trials frequently enough to justify holding on to this wheel. The wheel has never been crashed and it has always been stored indoors. The wheel features Zipp 82 hubs, 81 mm rim depth, 26 mm aero rim width, a Zipp titanium skewer, a Zipp valve extender and the white / silver Zipp lettering. The wheel as shown weighs 1 pound 8 ounces (690 g). There are 40 detailed images of the wheel in a slide show at Frame and Wheel Auction Services. Please scroll down to the bottom of the bottom of the description to find the slide show.

Review of condition

The wheel is in very good condition. It is clean and ready to ride. There is no cracking, flaking or flexing in the rim or the rim shell. The spokes are straight and tight and the wheel is round and true. The hubs spin freely, smoothly and quietly. There is no corrosion in the spokes or on the hub. Frame and Wheel notes the following. The braking surface of the rims shows light wear. There is a 10 mm scratch in the “i” in a Zipp sticker on the drive-side of the wheel. There is a 3 x 20 mm wrinkle in the “Z” in a Zipp sticker on the non drive side of the wheel. There is a 5 x 5 mm blemish on the rim shell on the non drive side of the wheel.

Frame and Wheel conclusion

Frame and Wheel’s view is that this wheel will suit the cyclist who wants to gain an edge in time trials. The wheel is light, aerodynamic and it is an excellent choice for a front wheel on a time trial bicycle. It is in very good condition and with proper preparation ready to be glued up with a time trial tire and turned loose on the road. Frame and Wheel believes that the wheel represents a happy and practical compromise between the 58 mm Zipp 404 and the 108 mm Zipp 1080 and notes that this wheel can be made to go as fast if not faster than its more glamorous Zipp Firecrest cousins. The new owner will relish the hushed roar of the wheel slicing through the air and notice the improved performance. The Zipp titanium skewer adds additional value to an already excellent opportunity to obtain an effectively new deep dish Zipp wheel.

Specifications

Front

Brand: Zipp

Model: 808

Model year: 2008

Rim material: carbon

Rim shell: carbon ABLC

Type: tubular

Serial number: not given

Size: 700c

Weight with skewer: 1 pound 8 ounce / 690 g

Spoke count: 18

Spokes: alloy bladed silver external nipples

Lacing: radial

Hub: Zipp 82 alloy

Skewer: Zipp titanium

Rim depth: 81 mm (measured by Frame and Wheel)

Aero rim width: 26.0 mm (measured by Frame and Wheel)

Tire: not included

Over Lock Nut Dimension: 100 mm

Finish: white lettering silver banner on carbon

Frame and Wheel rating: Very good condition

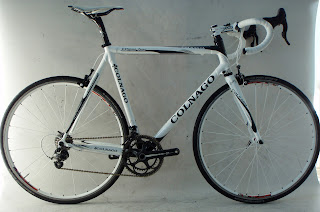

2008 Colnago Extreme Power 58cm Campagnolo Super Record 11 speed DT Swiss RR 1.1 clincher wheel TWBK carbon white

Sold: $1,957 Buyer: Canada
2008 Colnago Extreme Power 58cm Campagnolo Super Record 11 speed DT Swiss RR 1.1 clincher wheel TWBK

Frame and Wheel is auctioning a 2008 Colnago Extreme Power road bicycle built up with Campagnolo Super Record 11 speed components and DT Swiss RR 1.1 wheels on the Frame and Wheel eBay Store. The bicycle was purchased new at Pista Palace in San Diego in 2008. It was used for racing and training in California and New England for two years. In 2010, the owner was involved in a crash that resulted in damage to the  top tube and the rear derailleur body. The frame was sent back to Colnago in Italy for inspection. Colnago determined that the damage to the top tube was superficial and concluded that the frame was structurally sound. Colnago repainted the abrasion on the top tube. Seven months later, the frame was returned to the owner and built back up. The bicycle was used for training and racing in 2011. The owner is selling the bicycle because he is upgrading to electronic shifting and he is not satisfied with the amount of time it took for Colnago to make a conclusion about the frame and to repaint it. The current owner is a masters category cyclist and the only owner. The bicycle has been professionally maintained by Cyclemania in Portland Maine and was recently tuned up. It has always been stored indoors.

The bicycle features Campagnolo Super Record 11 speed group set, DT Swiss RR 1.1 alloy clincher wheel set with custom white bladed spokes (Campagnolo free hub body), DT Swiss skewers, Bontrager XXX Lite VR handlebars, Deda Zero 100 alloy stem, Specialized Toupe Pro seat, KMC X11SL-TI eleven speed “gold” chain, Garmin Edge 705 road computer mount and chain stay sensor and Lizard Skin handle bar tape. The frame set features Colnago Carbon 75 front fork, Colnago carbon seat post, Colnago head set and TWBK white on black finish. The frame features carbon lugs, oversized tubing, over sized “leaf shaped” chain stays, replaceable rear derailleur hanger, riveted front derailleur hanger for braze-on front derailleur, alloy drop outs, double water bottle cage mount and 70 mm Italian bottom bracket. The bicycle as shown weighs 15 pounds and 2 ounces (9.6 kg). The serial number on the inside of the left rear drop out reads PW6 549. The owner is 6 feet tall with an inseam of about 32 to 34 inches. Pedals not included. Water bottle cages not included. There are 120 detailed images of the bicycle at Frame and Wheel Auction Services Please take a look to obtain a better understanding of the bicycle’s condition.

Review of condition

The bicycle is in very good condition and shows only light signs of wear. It is clean and ready to ride. The shifting is smooth and complete in all twenty-two gears. The brakes activate easily and grip well. The wheels are true and round and the hubs spin freely and smoothly. There is no lateral play in the hubs. The spokes are straight and tight. The tires hold pressure. The tire treads are not heavily worn and the side walls are not cracked.

There are no cracks, bulges or flaking in the finish of the frame or any faults that raise concerns about the structural integrity of the frame. The front and rear forks are in alignment with the centerline of the frame and the rear derailleur hanger is straight and undamaged. The front derailleur hanger is riveted securely to the seat tube and undamaged. There is no play in the bottom bracket. There is no corrosion in the bolts on the stem, the seat post or in the water bottle cage bolt holes. The chain does not read 1.0 on the chain wear tool.

Frame and Wheel notes the following. There is an 8 x 5 mm chip on the center leaf of the Colnago clover on the head tube. There are two 8 x 5 mm chips on the top of the drive-side bottom bracket shell from a dropped chain. There is a 2 x 15 mm abrasion on the drive side chain stay. There is a 2 x 130 mm abrasion on the top of the top tube near the Extreme Power lettering. There is a 5 x 50 mm abrasion on the bottom of the top tube near the Extreme Power lettering. There is a 5 x 25 mm abrasion on the tip of the right hand dual control shift lever. There is a 10 x 30 mm abrasion on the body of the rear derailleur. There is a 5 x 15 mm tear on the bar tape on the end of the right side handle bar drop. There is a 5 x 10 mm abrasion on the drive side edge of the seat. There is wear around the rear and front drop outs. The front and rear brake pad replacement indicators show about 2 mm or less of pad remaining. There is wear on the head tube from the brake cables. There is wear on the seat tube lug from the rear brake cable. there is wear on the seat post from the front derailleur cable. The cable housing around the handle bars shows wear. There is wear on the non drive-side chain stay from a road computer sensor. There is wear on the stem. There are scratches on the seat post from installation and removal and from a seat bag. The chain reads 0.75 on the chain wear tool. The white finish on the braking surface of the rims has worn off. The braking surfaces of the rims show wear. There are scratches on three spokes on the front wheel.

Frame and Wheel conclusion

Frame and Wheel’s view is that this a very nice and light road racing frame for the performance cyclist who seeks the stiffness and style of Colnago’s traditional carbon road frames and who appreciates the precision and performance of Campagnolo Super Record eleven speed components. The bicycle is in very good condition, but it has been loved, and thus shows signs of having been ridden and raced frequently and intensively. Frame and Wheel believes that the bicycle has many more hours of racing and riding remaining in its carbon fiber body and soul. The  DT Swiss RR 1.1 wheels are excellent for training and nicely complement the TWBK finish of the frame. The bicycle has a bright future as a primary racing bike, but could also do very well as a training or travel bicycle. The new owner will relish the ride and the classic Italian voice of this bicycle as well as the excellent valuation at which it was obtained.

Specifications:

Brand: Colnago

Model: Extreme Power (EP)

Model year: 2008

Size: 58.0 cm

Color: TWBK White on nude carbon

Frame material: carbon Carbonio Alto Modulo

Frame design: traditional

Frame serial number: PW6 549

Fork design: standard

Fork material: carbon
Fork model: Colnago Carbon 75

Fork serial number: illegible

Wheel size: 700c

Frame and Wheel rating: Very good condition

Following measurements are by Frame and Wheel

Total weight with wheels: 15 pounds 2 ounces (6.9 kg)

Total weight without wheels: 9 pounds 13 ounces (4.5  kg)

Front wheel weight with skewer: 2 pounds 5 ounces (1.1 kg)

Rear wheel weight with skewer and sprocket: 3 pounds 1 ounces (1.5 kg)

Center of BB to top of seat tube: 58.0 cm

Effective top tube: 56.5 cm (c-c)

Seat post length from bottom to center rails: 35.0 cm

Stand over height from middle of top tube: 82.0 cm

Bottom bracket height: 28.0 cm

Head tube length: 16.4 cm

Following measurements are by Colnago

Seat tube (c-t): 58.0 cm

Top tube length: 56.5 cm

Head tube length: 16.4 cm

Chain stay length: 41.1 cm

Seat tube angle: 72.5 cm

Geometry and specifications

Front fork

Model: Colnago Carbon 75

Year: 2008

Weight: 380 g (weighed by Frame and Wheel)

Length: 37.5 cm

Serial number: illegible

Steer tube material: carbon

Steer tube diameter: 1 1/8 inch

Steer tube length: 25.5 cm (base of crown race to top) previously cut

Crown race diameter: 30 mm

Drop outs: alloy

Safety tabs: yes

Brake type: caliper

Handlebar

Brand: Bontrager

Model: XXX Lite VR

Width: 44.0 cm

Bar clamp diameter: 31.8 mm

Drop: 85 mm

Reach: 135 mm

Bar tape: Lizard skin / White

Stem

Brand: Deda

Model: Zero 100

Material: alloy

Length: 110 mm

Rise: 82 degrees

Weight: 160 g (weighed by Frame and Wheel)

Steer tube diameter: 1 1/8 inch

Bar clamp diameter: 31.8 mm

Collar stack height: 40 mm

Face plate: alloy four bolts

Headset

Colnago  2 sealed cartridges

Seat post

Brand: Colnago

Model: Colnago

Seat clamp type: double bolt alloy

Seat cradle dimension: 43 mm x 30 mm

Seat collar diameter: 34.8 mm

Post material: carbon

Head material: carbon

Clamp material: alloy

Weight: 200 g (weighed by Frame and Wheel)

Offset: 20.0 mm

Post diameter: 31.6 mm

Length: 35.0 cm

Finish: Black

Seat

Brand: Specialized

Model: Toupe Pro

Model year: 2010

Weight: 140 g (weighed by Frame and Wheel)

Covering: Synthetic

Length: 270 mm

Width: 143 mm

Rails: carbon

Length of rails: 70 mm

Rail width: 45 mm c-c

Finish: White

Crank set

Brand: Campagnolo

Group: Super Record 11 Speed

Model: FC9-SR23C Ultra Torque Ultra Hollow

Chain rings: 53T / 39T double

Chain compatibility: 11 speed

Bolt circle diameter: 130 mm

Crank arm length: 172.5 mm

Spider material: carbon

Finish: black

Rear derailleur

Brand: Campagnolo

Group: Super Record 11 Speed

Model: RD9-SR (illegible)

Cage type: Short

Drive train: 11-speed

Finish: Black

Front derailleur

Brand: Campagnolo

Group: Super Record 11 Speed

Model: FD9-SR28

Type: Braze-on

Crank set compatibility: double and compact

Finish: Black

Brakes

Brand: Campagnolo

Group: Super Record

Model: BR7-RE Skeleton

Pads: Swissstop Pro Yellow

Type: Single pivot side pull caliper brake

Quick release: no

Finish: Black

Cassette

Brand: Campagnolo

Group: Super Record 11 Speed

Gearing: 11, 12, 13, 14, 15, 16, 17, 19, 21, 23, 25

Dual control brake levers

Brand: Campagnolo

Group: Super Record 11 Speed

Model: EP9-SR1C Ultra-shift Ergopower

Speed (R): 11 speed

Speed (L): Double

Finish: Black

Bottom bracket

Brand: Campagnolo

Group: Super Record 11 Speed

Bearing type: sealed cartridge ceramic

Threading: Italian (36 x 24 threads per inch)

Shell length: 70 mm

Others

Drop outs: alloy standard (R) alloy standard (F)

Rear derailleur hanger: replaceable

Front derailleur hanger: riveted for braze-on

Cabling: external

Chain: KMC X11SL-TI 1/2” x 11/28”

Pedals: not included

Front

Brand: DT Swiss

Model: RR 1.1

Model year: 2008

Rim material: alloy

Type: clincher

Serial number: unknown

Size: 700c

Front wheel weight with skewer: 2 pounds 5 ounces (1.1 kg)

Spoke count: 28

Spokes: alloy bladed white external nipples

Lacing: 1-cross

Hub: DT Swiss 240s Radial

Skewer: DT Swiss

Rim depth: 21 mm

Rim width: 19 mm (o-o)

Tire: Continental Grand Prix 4000 S 700 x 23

Over Lock Nut Dimension: 100 mm

Finish: white

Rear

Brand: DT Swiss

Model: RR 1.1

Model year: 2008

Rim material: alloy

Type: clincher

ETRTO: 622 x 15

Size: 700c

Weight with skewer and sprocket: 3 pounds 1 ounces (1.5 kg)

Spoke count: 28

Spokes: alloy bladed white external nipples

Lacing: drive-side: 2-cross  non drive-side: 2-cross

Hub: DT Swiss 240s Radial

Skewer: DT Swiss

Rim depth: 21 mm

Rim width: 19 mm (o-o)

Tire: Continental Grand Prix 4000 S 700 x 23

Over Lock Nut Dimension: 130 mm

Finish: White

Free hub body: Campagnolo

Shipping dimensions

Box dimensions: 54 x 9 x 30

Weight: 25 pounds

Vintage 1988 Shimano cassette 7 speed 12-22

Sold: $21 Buyer: USA

Vintage 1988 Shimano cassette 7 speed 12-22

Frame and Wheel is auctioning a vintage 1988 Shimano cassette on the Frame and Wheel eBay Store. The cassette is from a Shimano FH-1051 seven speed free hub that has been in storage for the past three years. The cassette is in fair condition. There is corrosion on the cogs. Frame and Wheel highlights that the teeth do not have the appearance of shark fins. The cogs are secured together firmly. The threads on 12 tooth cog are not stripped. A classic cassette that will go very well on a classic bike.

Specifications

Brand: Shimano

Model: 7 speed

Year: 1988 (ML)

Gearing: 12, 13, 14, 15, 17, 19, 22

Weight: 210 g

Frame and Wheel rating: Fair condition

Vintage 1988 Shimano SL-1051 down tube shift levers 7 speed pair gray

Sold: $13 Buyer: USA

Vintage 1988 Shimano SL-1051 down tube shift levers 7 speed pair gray

Frame and Wheel is auctioning a pair of Vintage 1988 Shimano SL-1051 shift levers on the Frame and Wheel eBay Store. The levers are from a 1989 Miyata 917 seven speed road bike that has been in storage for the past three years. The levers are in good condition. They are clean and the screws and mounts are not missing. The friction to SIS setting work properly. There are not scratches or cracks in the levers. Frame and Wheel notes that there is corrosion on the heads of the screws. A pair of classic down tube shifters for a classic bike restoration project.

Specifications

Brand: Shimano

Group: 105

Model: SL-1051

Year: 1988 MF

Weight: 40 g each 80 g total (weighed by Frame and Wheel)

Speed (R): 7 speed

Speed (L): double

Frame and Wheel rating: Good condition

Vintage 1988 Shimano 105 SLR BL-1051 brake levers pair black hoods

Sold: 21.50 Buyer: Canada

Vintage 1988 Shimano 105 SLR BL-1051 brake levers pair black hoods

Frame and Wheel is auctioning a pair of vintage 1988 Shimano 105 SLR BL-1051 brake levers on the Frame and Wheel eBay Store. The levers were mounted on a 1989 Miyata 914 that has been in storage for three years. The levers feature aero hoods. The levers are in good condition. They are clean and they work properly. The brake lever spring is strong. The hoods are mounted properly and snugly and are not ripped. There is no corrosion in the spring mechanism or the bolts. The handle bar clamps and bolts are not missing. A classic set of brake levers for the down tube shifter bike.

Specifications

Brand: Shimano

Group: 105 SLR

Model: BL-1051

Year: 1988 MH

Weight: 125 g each 250 g total (weighed by Frame and Wheel)

Handle bar clamp diameter: 23.8 - 24.2 mm

Frame and Wheel rating: Good condition

2009 SRAM Rival rear derailleur short cage 10 speed

Sold: $38   Buyer: USA
2009 SRAM Rival rear derailleur short cage 10 speed

Frame and Wheel is auctioning a 2009 SRAM Rival rear derailleur on the Frame and Wheel eBay Store. The derailleur was mounted on Frame and Wheel’s cyclocross bike and has about 73 hours of cyclocross training and racing use. Frame and Wheel has upgraded to an Austro-Daimler Superleicht Ubercross Carbon and no longer needs the derailleur. The derailleur has been in storage for over a year. The derailleur is in good condition. It is clean and ready for installation. The cage is straight and the inward and downward spring tension is strong. The pulleys spin properly. The cable adjusting bolt and the cable fixing bolt are not missing. The B-axle bolt is not stripped. The limit screws turn properly. There is no corrosion. Frame and Wheel notes that there is a 2 x 10 mm abrasion on the inner cage plate near the front pulley.  A perfectly fine and high quality derailleur with many hours of use remaining.

Specifications

Brand: SRAM

Group: Rival

Serial number: 31T90020792

Cage type: Short

Weight: 180 g

Drive train: 10-speed

Frame and Wheel Rating: Good condition

2006 Shimano Dura Ace CS-7800 10 speed cassette 11-23

Sold: $55 Buyer: USA

2006 Shimano Dura Ace CS-7800 10 speed cassette 11-23

Frame and Wheel is auctioning a 2006 Shimano Dura-Ace 7800 cassette on the Frame and Wheel eBay Store. The cassette was used by Frame and Wheel for racing and training. It has been in storage for the past three years. The cassette is in fair condition. It shows signs of wear and corrosion. Frame and Wheel highlights the following. It is clean. The teeth do not look like shark fins. The sprockets are not bent and the teeth are not chipped or broken. The lock ring is not stripped and the lock ring spacer is not missing. The two sprocket spacers are not missing. The spacer is not missing. An older but high quality cassette that still has some hours remaining. It could go well on an off season wheel. It’s most compelling feature of course is that it “goes to eleven”.

Specifications

Brand: Shimano

Group: Dura-Ace

Model: CS-7800

Year: 2006 (EK FA)

Gearing: 11, 12, 13, 14, 15, 17, 19, 21, 23

Weight: 170 g

Frame and Wheel rating: Fair condition

Vintage 1980s Campagnolo Nuovo Record rear skewer

Sold: $28  Buyer: United Kingdom

Vintage 1980s Campagnolo Nuovo Record rear skewer

Frame and Wheel is auctioning a vintage Campagnolo rear skewer on the Frame and Wheel eBay Store. The skewer was originally mounted on a 1984 Austro-Daimler Superleicht. It was removed in the late 80s and mounted on a commuter bicycle. That bicycle has been hanging in a garage for more than 20 years. The skewer is in good condition. It is clean and straight. It works properly. There are no scratches on the ends. Both springs are included. The threads are not stripped. Frame and Wheel notes that there is some corrosion on the drive side end of the skewer.

Specifications

Brand: Campagnolo

Group: Nuovo Record

Year: 1980s

Type: Rear

Weight: 80 g

Frame and Wheel rating: Good condition

Vintage 1980s Campagnolo Nuovo Record pedals pair

Sold: $57  Buyer: Indonesia

Vintage 1980s Campagnolo Nuovo Record * pedals pair

Frame and Wheel is auctioning a pair of Campagnolo Nuovo Record Pedals on the Frame and Wheel eBay Store. The pedals were originally mounted on a 1984 Austro-Daimler Superleicht. They were removed in the late 80s and mounted on a commuter bicycle. That bicycle has been hanging in a garage for more than 20 years. The pedals are in fair condition. The cage of the left pedal is bent from a fall. There are scratches along the edges of the cage. There is corrosion on the surfaces of the cage and the dust caps. Frame and Wheel highlights the following. The pedals are clean. The axles are straight and spinning smoothly and freely. A very nice pair of old pedals for the Campagnolo aficionado.

Specifications

Brand: Campagnolo

Group: Nuovo Record

Year: 1980s

Cage material: Steel

Pedal type: Quill

Body material: Aluminum alloy

Finish: Chrome

Weight: 400 g pair

Axle material: steel

Frame and Wheel rating: Fair condition

2009 SRAM Rival Double Tap dual control levers pair black hoods

Sold: $200  Buyer: USA

2009 SRAM Rival Double Tap dual control levers pair black hoods

Frame and Wheel is auctioning a pair of SRAM Rival Double Tap dual control levers on the Frame and Wheel eBay store. The levers was mounted on Frame and Wheel’s cyclocross bike and have about 73 hours of cyclocross training and racing use. Frame and Wheel has upgraded to an Austro-Daimler Superleicht Ubercross Carbon and no longer needs the levers. The levers are in good condition. They are clean and ready for installation. The shifting mechanism works properly and the brake springs are strong. The hoods are mounted properly and there are no rips or tears. There is no corrosion in the shifting mechanism or on the bar mounts. Frame and Wheel notes the following. There is 3 x 10 mm abrasion on the tip of the right lever. There is a 2 x 3 mm abrasion on the top end of the right lever. There are 2 x 2 mm scratches on the top of the shift levers. There is a 5 x 5 mm blemish on the right shifter near the “Double Tap” lettering. An excellent opportunity to obtain a pair of dual control levers that still have many hours of use remaining in them.

Specifications

Brand: SRAM

Group: Rival

Year: 2009

Speed: 10-speed

Weight: 160 g each 320 g total (weighed by Frame and Wheel)

Frame and Wheel rating: Good condition
