Sunday, October 28, 2012

Sidi Genius 5 Pro Carbon road shoe pair men size Euro 45 US 12 CM 28.6 black

Sold: $144 Buyer: Australia
Sidi Genius 5 Pro Carbon road shoe pair men size Euro 45 US 12 CM 28.6 black
Frame and Wheel is auctioning a pair of Sidi Genius 5 Pro Carbon road shoes on the Frame and Wheel eBay Store. The shoes were purchased new in 2011. They were used for recreational riding. They have been in storage for most of 2012. The owner is selling the shoes because he is no longer able to ride his bicycle. The shoes feature two-way ratchet adjustable buckle, dual velcro straps, carbon composite outsole, Lorica synthetic leather covering, breathable nylon mesh panels, Sidi insoles and Italian foot wear spirit. The shoes are in good condition. They are clean and they do not smell. The adjustable buckle and velcro closure system works properly. There are no cracks or flaking in the outsole. The bolts for the cleats are not stripped or corroded. There is no wear around the edges of the collar. The inserts are clean. Frame and Wheel notes the following. There is a 3 mm x 10 mm abrasion on the left tip of the right shoe. There is 2 mm x 10 mm abrasion on the left tip of the left shoe. The heel pads show wear. An excellent opportunity to obtain a very lightly used pair of road shoes. Cleats not included.

Specifications
Brand: Sidi
Model: Genius 5 Pro Carbon
Type: Men
Sidi size: 45
Model year: 2010 estimated
Sidi size: 45
Zappos sizing: Euro: 45  US: 12  UK: 11.5 Inches: 11.25 CM: 28.6
Serial number: na
Series: Road
Insert width: 9.0 cm measured by Frame and Wheel at widest point
Insert length: 28.1 cm or 11 inches measured by Frame and Wheel from end to end
Weight: 330 g each 660 g pair
Cleat pattern: three hole
Body material: nylon mesh synthetic leather
Outsole material: carbon reinforced plastic Millennium III
Finish: black on black
Cleat compatibility: 3 hole road
Insole: Sidi
Frame and Wheel rating: Good condition
Frame and Wheel PAAS charge: $15.00



Thursday, October 25, 2012

2012 Campagnolo Bora Ultra Two carbon tubular wheel set 50mm rim red silver lettering

Sold: $1,580  Buyer: USA
2012 Campagnolo Bora Ultra Two carbon tubular wheel set 50mm rim red silver lettering
Frame and Wheel is auctioning a Campagnolo Bora Ultra Two carbon tubular wheel set on the Frame and Wheel eBay Store. The wheels were purchased new in January 2012. They were used on a road bike. They have never been raced. They have never been crashed. The wheels have less than 1,000 miles of use. The owner is selling the wheel set because he has another pair of wheels and he no longer needs these wheels. The wheels feature 50 mm rim depth, Campagnolo carbon hubs, oversized drive-side flange, G3 Geometry lacing on the rear wheel, aero steel spokes, red and silver lettering, light weight and Campagnolo cool. The wheels as shown weigh 3 pounds 2 ounces (1.4 kg). The serial number on the front rim reads 309082/D-051. The serial number on the rear rim is illegible. Campagnolo free hub body! Requires Campagnolo brake pads (not included). Includes Campagnolo wheel bags. There are 75 images of the wheel set at Frame and Wheel’s Flickr page. Please take a look. Please see the Frame and Wheel website for more information about the company and the service.

Review of condition
The wheels are in very good condition. They are clean and they are ready to ride. The hubs spin smoothly and freely. The spokes are tight and straight. The rims are round and the wheels are true. There is no variation when placed in a truing stand. There are no cracks, flexing, flaking or discoloration in the carbon rim or the carbon shell. There are no marks in the free hub body splines from a cassette. There are no cracks in the carbon hub body. There is no play in the hubs. There are no cracks in the flanges of the hubs. There is no corrosion on the spokes, the nipples or on the skewers. The stickers are not peeling off. Frame and Wheel notes the following. There is a 1 mm x 50 mm scratch on the “L” in Campagnolo sticker on the front wheel. There is a light layer of glue on the rims. The braking surface of the rims show light wear.

Frame and Wheel conclusion
Frame and Wheel’s view is that these Campagnolo Bora Ultra Two wheels will make an excellent choice for the dedicated road cyclist who favors Campagnolo components, appreciates the ride characteristics of tubular tires and seeks to upgrade to a light, fast and versatile set of tubular racing wheels. The wheels are in very good condition and show immaterial signs of wear. They are effectively new. These wheels will result in an immediate weight and speed advantage and they will complement nicely the Italian voice of a Colnago C-50 or Pinarello Dogma 2. The new owner will relish the light weight and feel of these wheels and may never bother to take them off. An excellent and rare opportunity to obtain a pair of some of the finest wheels on the market today.

Specifications

Front
Brand: Campagnolo
Model: Bora Ultra Two
Model year: 2012
Rim material: carbon
Rim shell material: carbon
Type: tubular
Series: Road
Serial number: 309082/D-051
Size: 700c
Front wheel weight with skewer: 1 pounds 6 ounces (630 g)
Spoke count: 18
Spokes: steel black bladed internal nipples
Lacing: radial
Hub: Campagnolo
Hub material: carbon
Skewer: Campagnolo steel
Rim depth: 50 mm
Rim width: 20 mm (o-o)
Tire: na
Over Lock Nut Dimension: 100 mm
Finish: Nude carbon red and silver lettering
Frame and Wheel rating: Very ood condition

Rear
Brand: Campagnolo
Model: Bora Ultra Two
Model year: 2012
Rim material: carbon
Rim shell material: carbon
Rim shell: carbon
Type: tubular
Series: Road
Serial number: illegible
Size: 700c
Rear wheel weight with skewer: 1 pounds 12 ounces (800 kg)
Spoke count: 21
Spokes: steel black bladed internal nipples
Lacing: 2-Cross
Hub: Campagnolo
Hub material: carbon
Skewer: Campagnolo steel
Rim depth: 50 mm
Rim width: 20 mm (o-o)
Tire: na
Over Lock Nut Dimension: 130 mm
Finish: Nude carbon red silver lettering
Free hub body: Campagnolo
Frame and Wheel rating: Very good condition
Frame and Wheel PAAS charge: $50.00




2012 Wyndy Milla Big Gernaium 60cm XXL custom frame set road pink black white

For sale at Wyndy Millah HQ: GBP1,250
2012 Wyndy Milla Big Gernaium 60cm XXL custom frame set road pink black white
Frame and Wheel is auctioning a 2012 Wyndy Milla Big Geranium frame set on the Frame and Wheel eBay Store. The frame set was custom ordered and purchased new directly from Wyndy Millah in early 2012. It was built up by the Wyndy Millah Pro Shop in Surrey, England. The owner used the bicycle for training in 2012. It has about 1,500 miles of use. It has never been crashed. The bicycle was also used as a display model at the Wyndy Milla Pro Shop and as a model bike for the website (please see image). The bicycle was parted out in September and the frame set placed in storage. The owner is selling the frame set because he has another bike to ride. The frame set features tall cyclist sizing, Wyndy Milla full carbon front fork, integrated seat mast, carbon seat post post, tapered head tube (1 1/8 inch to 1 1/2 inch), asymmetrcial top tube, oversized “trapezoid” down tube, aero seat tube with cutaway, flat seat stays with wishbone junction, oversized rectangular chain stays, Italian thread bottom bracket and distinctive and one of a kind pink / white / black Wyndy Milla finish. The frame set as pictured weighs 4 pounds 14 ounces (2.2 kg). The seat tube and top tube sizing numbers on the bottom bracket read 55 x 60.5. The serial number on the front fork reads 423517 1. The owner is 6 feet 2 inches with an inseam of 34 inches. Please see 250 additional images of the frame set at the Frame and Wheel’s Flickr page.  Please see the Frame and Wheel website for more information about the service.

Review of condition
The frame set is in very good condition. It is clean and ready for build. There are no cracks, bulges, discolorations, flexing or flaking that raise concerns about the structural integrity of the frame. The rear triangle is in alignment with the the centerline of the frame to within 0.5 mm (less than the width of a penny). The rear derailleur hanger is straight and undamaged. The chain stay cable stop is riveted securely and clear of obstructions. The barrel adjusters are riveted securely and working properly. There is no corrosion in the water bottle bolt holes. The bottom bracket shell is not damaged. The threads in the bottom bracket are not stripped or corroded. There are no cracks, bulges, discoloration, flexing or flaking that raise concerns about the structural integrity of the front fork. The crown race is not damaged. The cartridge bearings are not corroded or damaged. The cartridge bearings turn smoothly and the head set is complete. There are no cracks, bulges, discoloration, flexing or flaking that raise concerns about the structural integrity of the seat post. The seat clamp works properly and is complete.

Frame and Wheel notes the following. There are three 1 mm x 5 mm abrasions on the drive side top tube near the junction with the seat tube. There are five 1 mm x 4 mm abrasions on the drive side seat tube near the “W” in Wyndy. There is a 3 mm x 7 mm chip in the finish on the front top edge of the seat tube. There are two 4 mm x 10 mm chips in the finish on the inside of the drive side chain stay from the chain. There is one 4 mm x 15 mm chip in the finish on the inside of the drive side chain stay from the chain. There is a 5 mm x 15 mm abrasion on the side of the drive side chain stay near the cable stop. There is a 2 mm x 5 mm abrasion on the drive side down tube near the “W” in Wyndy. There is a 3 mm x 3 mm scratch in that “W”. There is a 3 mm x 3 mm abrasion on the drive side down tube near the second “y” in Wyndy. There is a 5 mm x 10 mm abrasion on the drive side head tube from cable housing rub. There is a 10 mm x 10 mm abrasion on the non drive side head tube from cable housing rub. There is a 0.5 mm x 80 mm abrasion in the aero cut out of the seat tube from road wear. There is 1 mm x 1 mm imperfection in the finish on the non drive side down tube near the “W” in Wyndy. There is wear around the brake mounts. There is wear around the dropouts. There is wear around the edges of the bottom bracket shell. There is no chain stay protector.

Frame and Wheel conclusion
Frame and Wheel’s view is that this frame set will make an excellent choice for the very tall dedicated road cyclist who seeks to upgrade to something very light and very stiff. The frame set is in very good condition and shows immaterial signs of wear. It is effectively  new and has many unused hours of serious training and racing in it oversized and aero carbon tubes. Built up with a Campagnolo Super Record 11-speed group set, Campagnolo Bora Ultra Two tubular wheels and Cinelli integrated bar and stem, the bicycle will be very light and fast and it will have an irreverent and animated voice that channels the vibe of surf and skate culture, but belies its pure Anglo-Italian road racing spirit. The new owner will relish these qualities and derive additional satisfaction from knowing that this particular frame set has been the public face of the Big Gernaium line for 2012 and is the only one with this finish. An excellent and very rare opportunity to join the growing Wyndy Milla peleton.

Specifications:
Brand: Wyndy Willa
Model: Big Geranium
Size: Custom 60 cm XXL
Color: pink / white / black
Frame material: carbon
Frame serial number: 55 x 60.5 (custom size reference)
Fork material: carbon
Fork model: Wyndy Milla
Design: sloping geometry road integrated seat post
Wheel size: 700c
Frame and Wheel rating: Very good condition

Following measurements are by Frame and Wheel
Total weight: 2.2 kg / 4 pounds 14 ounces (frame: 1,480 g fork: 420 g seat post: 125 g headset components and seat collar: 175 g).
Center of BB to top edge of integrated seat mast: 77.5 cm (c-t) cut
Center of BB to center rails of seat post when set at minimum insert : 83.5 cm (c-c)
Center of BB to center rails of seat post when fully inserted: 82.2 cm (c-c)
Width of seat post collar: 1.3 cm
Effective top tube length: 60.5 cm (c-c)
Seat post length: 8.0 cm (bottom of seat post to minimum insert)
Seat post length: 5.5 cm mm (minimum insert to center rails)
Seat post length: 13.5 cm mm (bottom to center rails)

Following measurements are by Wyndy Milla
Note on geometry measurements: The exact geometry for this frame set was obtained from Windy Milla and is posted as a link for your review (Please see Custom geometry sheet for Wyndy Milla Big Geranium). Frame and Wheel notes that if the seat tube on this frame is measured according to the geometry diagram on the Wyndy Milla website, it would be a 60 cm or a size that Frame and Wheel is calling XXL.

Frame size: Custom (60 cm or Size XXL)
Top tube (c-c): 60.5 cm (from custom geometry sheet)
Seat tube (c-c): 55.0 cm (from custom geometry sheet)
Seat tube: (following measurement A from Windy Milla website geometry sheet): 60.0 cm
Head tube (from custom geometry sheet): 19.5 cm
Head tube angle (from custom geometry sheet): 74.0 degrees
Seat tube angle (from custom geometry sheet): 72.0 degrees
Fork rake (from custom geometry sheet): 4.0 cm
Front center (from custom geometry sheet): 60.8 cm
Chain stay (from custom geometry sheet): 41.0 cm
Bottom bracket drop (from custom geometry sheet): 7.0 cm
Wheel base (from custom geometry sheet): 100.8 cm



Front fork
Model: Wyndy Milla carbon drop outs, safety tabs.
Weight: 420 g
Front fork length: 37.5 cm
Steer tube serial number: 423517 1
Crown serial number: none
Crown material: carbon
Steer tube material: carbon
Steer tube diameter: 1 1/8 inch (28.6 mm) to 1 1/2 inch (40 mm)
Steer tube length: 26.0 cm (base of crown race to top) cut
Crown race diameter: 40 mm
Drop outs: carbon
Brake type: caliper
Rake: 4.0 cm

Seat post:
Brand: Wyndy Milla
Seat clamp type: double bolt
Seat clamp material: alloy
Head material: carbon
Seat clamp bed dimensions: 43 mm x 29 mm
Weight: 125 g
Offset: 5.0 mm
Seat post diameter: aero
Seat post length: 8.0 cm (bottom of seat post to minimum insert)
Seat post length: 5.5 cm mm (minimum insert to center rails)
Seat post length: 13.5 cm mm (bottom to center rails)
Finish: black

Other specifications
Bottom bracket: Italian standard 68 mm (36 mm x 24 tpi)
Cane Creek Standardized Headset Identification System (SHIS): IS42/28.6  IS52/40
Headset: FSA sealed cartridge bearings Mpart carbon top cap, FSA bearing cover
Spacers: 1 x 10 mm 1 x 10 mm carbon
Drop outs: rear: vertical carbon with alloy covering. front: standard carbon
Rear derailleur hanger: alloy replaceable
Front derailleur hanger: Brevttato bolt-mount, alloy for braze-on
Cabling: internal top tube, external down tube and chain stay
Rear fork spacing: 130 mm
Front fork spacing: 100 mm



2004 Parlee Z3 59 XL carbon compact frame set Chris King headset nude road

Highest bid: $900 Bidder: USA
2004 Parlee Z3 59 XL carbon compact frame set Chris King headset nude road
Frame and Wheel is auctioning a 2004 Parlee Z3 59 XL frame set on the Frame and Wheel eBay Store. The frame set was purchased from Parlee Cycles in 2010. It was built up and used for fair weather club rides. The bicycle was parted out in 2012 and has been in storage. The frame set has never been crashed. It has always been stored indoors. The owner is selling the frame set because he has obtained another Parlee and no longer needs this one. The frame set features Parlee Cycles full carbon front fork, Chris King NoThreadset external cup headset (red finish) and Parlee adjustable carbon front derailleur hanger “belt”. The frame features compact geometry, tall head tube, “wish-bone” seat stays, carbon lugs, titanium bottom bracket and rear drop outs, carbon cable stops, orange lettering on nude carbon finish and original “Made in the USA” Parlee provenance. The frame set as shown weighs 3 pounds 9 ounces (1.6 kg). The serial number reads PCZ04E30039. The owner is 6 feet 3 inches with an inseam of 32 inches. Extra front derailleur hanger belt and expander bolt included. Seat post not included. Please see 100 additional images of the frame set at Frame and Wheel’s Flickr page. Please see the Frame and Wheel website for more information about the service.

Transferable lifetime warranty
Parlee Cycles informed Frame and Wheel that for frame sets of this vintage, the original lifetime warranty can be transfered to the new owner. This requires the frame set to be shipped to Parlee Cycles headquarters in Beverly, Massachusetts, where it will be inspected for any faults. If the frame set passes this inspection, Parlee Cycles will reissue the warranty to the new owner. This costs $250 payable to Parlee Cycles. Frame and Wheel will be very pleased to facilitate this process on behalf of the winner.

Review of condition
The frame set is in very good condition. It is clean and ready for build. There are no cracks, bulges or flexing that raise concerns about the structural integrity of the frame or the fork. The rear drop outs are in alignment with the the centerline of the frame to within 1.0 mm (less than the width of a penny). The rear derailleur hanger is straight and undamaged. There is no road wear on the bottom of the down tube, the inside of the chain stays or the back of the seat tube. The carbon cable stops are undamaged and clear of obstructions. The headset cartridge bearings move smoothly and quietly and are securely mounted in the cups. There are no cracks, bulges, flexing or flaking in the steer tube. The race is mounted securely on the front fork. The headset is complete. The front fork has safety tabs. There is no corrosion in the bottom bracket, on the crown race or in the water bottle bolts.

Frame and Wheel notes the following. There is a 2 mm x 7 mm scratch on the outside face of the right fork blade. There is a 5 mm x 10 mm flaking in the finish on the cable stop on the top of the drive side down tube. There is a 3 mm x 5 mm imperfection in the finish on the end of the non drive-side chain stay. There is a 3 mm x 3 mm abrasion on the inside face of the drive side chain stay from wheel rub. There is a 5 mm x 5 mm abrasion on the underside of the top tube. There is light abrasion on the seat tube from the front derailleur hanger belt. There is light wear on the head tube from cable housing rub. There is wear around the brake mounts. There is wear around the rear drop outs. There is no chain stay protector.

Frame and Wheel conclusion
Frame and Wheel’s view is that this Parlee Z3 will make an excellent choice for the taller road cyclist who wants to upgrade to a light, full carbon, modern day classic frame set. This Z3 is in very good condition and it shows immaterial signs of wear. It is very light for its size and it is a blank slate upon which the new owner can create a masterpiece of cycling form and function. Built up with a Shimano Dura-Ace 7900 group set, Zipp 303 Firecrest tubulars, and 3T bars and stem, the frame set will become a very light and fast road bike with a distinctive voice that speaks clearly of Parlee Cycle’s ability to build some of the finest carbon frame sets on the market today. The bicycle will also become a strong candidate for Parlee Cycle’s Facebook Wall given that the frame set is believed to have had Mr. Parlee as its only other owner. Regardless of the build and the frame set’s unique provenance, this Z3 will attract plenty of complements from cyclists and non-cyclists alike and inspire the new owner to reach new levels of cycling excellence. A rare opportunity to join Peleton Parlee on one of the first Z3 frame sets to leave the factory and roll up the road.


Specifications:
Brand: Parlee
Model: Z3
Year: 2004
Size: 59 (XL)
Color: Nude carbon with clear gloss coat orange lettering
Frame material: carbon Parlee UD
Frame serial number: PCZ04E30039
Fork material: carbon
Fork model: Parlee Cycles
Design: compact geometry / sloping top tube road
Wheel size: 700c
Frame and Wheel rating: Very good condition

Following measurements are by Frame and Wheel
Total weight: 1.620 kg / 3 pounds 9 ounces (Frame and headset with sealed cartridges and seat collar: 1,200 g. Front fork: 370 g. Head set spacers front derailleur hanger: 50 g).
Center of BB to top of seat tube: 56.7 cm (c-t)
Effective top tube length: 57.0 cm (c-c)
Head tube length: 19.7 cm
Bottom bracket shell: 68 mm
Front fork length: 37.5 cm (from center of drop outs to crown race)

Following measurements are by Parlee

Size: 59 (XL)
Actual seat tube: 52 cm
Top tube length: 58.5 cm
Head tube angle: 74 degrees
Seat tube angle: 72.5 degrees
Chain stay length: 41.5 cm
Bottom bracket drop: 6.7 cm
Fork rake: 4.0 cm
Standover height: 81.6 cm
Head tube length: 17.9 - 19.9 cm
Front center: 59.5 cm
Wheel base: 100.1 cm

Front fork
Brand: Parlee
Model: Parlee Cycles carbon
Year: 2003
Finish: nude carbon
Weight: 370 g
Front fork length: 37.5 cm
Steer tube serial number: FF03-40-018
Steer tube material: carbon
Steer tube diameter: 1 1/8 inch (28.6 mm)
Steer tube length: 29.0 cm (base of crown race to top) previously cut
Crown race diameter: 30 mm
Safety tabs: no
Drop outs: carbon
Brake type mount: caliper
Rake: 4.0

Other specifications
Seat post: not included requires 31.6 mm diameter post
Seat post collar: Parlee custom alloy single bolt 36.9 mm
Seat clamp: na
Bottom bracket: English standard 68 mm (1.370 inch x 24 tpi)
Headset: Chris King NoThreadSet black for 1 1/8 inch steer tube 2 sealed cartridge bearings external cups
Spacers: carbon 9.5 mm (1 x 5.0 mm 1 x 2.5 mm 1 x 2.0 mm)
Drop outs: rear: vertical titanium front: standard carbon
Rear derailleur hanger: titanium non replaceable
Front derailleur hanger: Parlee carbon hanger for braze-on
Cabling: external
Rear fork spacing: 130 mm
Front fork spacing: 100 mm



Tuesday, October 9, 2012

1994 Coda Magic R900 crank set 53T/39T 175mm road double Coda bottom bracket

Sold: $210  Buyer: USA
1994 Coda Magic R900 crank set 53T/39T 175mm road double Coda bottom bracket
Frame and Wheel is auctioning a Coda Magic R900 crank set and bottom bracket on the Frame and Wheel eBay Store. The crank set was parted out from a classic Cannondale road bike. The crank set features milled integrated 53T / 39T chain ring, hollow and elliptical 175 mm crank arms, I-beam four bolt spider, proprietary Coda bottom bracket (English thread) and neo retro design. The crank set is in good condition. It is clean and ready for installation. The chain rings are not bent and the teeth are not chipped or broken. All four chain ring fixing bolts are included and are not stripped or locked. The crank arm fixing bolts are not stripped. The bolt holes for the pedals are not stripped. The bottom bracket threads are not stripped. There is no cracking along the edge of the crank arms (a fault that led to the recall of the cranks). Frame and Wheel notes the following. The bearings feel rough. One of the cups is very difficult or impossible to remove from the axle. The outer chain ring teeth show wear. There is surface corrosion on the axle. A rare and original crank set for the Cannondale enthusiast and an interesting piece of bicycle engineering that was perhaps ahead of its time. Coda by the way stands for Cannondale Original Design Application. Who knew?


Specifications
Brand: Coda Magic
Model: R900
Model year: 1994
Serial number: 4243 drive side crank arm 4244 non drive side crank arm integrated chain ring 4235
Crank arm and spider material: aluminum alloy
Spline Interface: 8-lobe taper Coda proprietary
Chain rings: 53T outer 39T inner Coda
Chain compatibility: 8 speed
Type: Double
Series: Road
Crank arm length: 175 mm
Bolt circle diameter: 130 mm according to Cannondale
Bottom bracket: Coda
Finish: Natural aluminum
Weight: 517 g
Frame and Wheel rating: Good condition

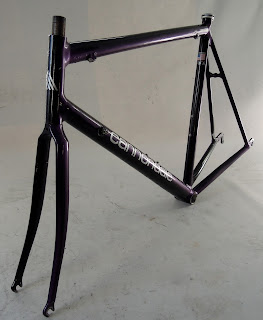

1995 Cannondale R800 58cm aluminum frameset black/violet road

Sold: $61  Buyer: USA
1995 Cannondale R800 58cm aluminum frameset black/violet road
Frame and Wheel is auctioning a 1995 Cannondale R800 frameset on the Frame and Wheel eBay Store. The frame set was obtained new in 1996. It was used for training and triathlons. The owner stopped riding it in 2007. It has been in storage since then. It has never been crashed. It has had only one owner. He is selling it because he does not ride it anymore. The frame set features aluminum construction, Kinesis Lightweight Aluminum front fork and Campagnolo Veloce external cup head set. The frame features “swaged” down tube and “ovalised” top tube, 130 mm rear dropouts, replaceable rear derailleur hanger, down tub shifting bosses, black with violet highlight finish and 1990s “Made in the USA” Cannondale provenance. The frame set as shown weighs 4 pounds 12 ounces. The serial number is illegible. Please see 90 additional images of the frame set at Frame and Wheel’s Flickr page. Please see the Frame and Wheel website for more information about the service.

Important information
There is a $20.00 Product Analysis and Service (PAAS) charge included in the shipping for this item. The PAAS charge covers or defrays the cost of packaging materials and compensates Frame and Wheel for the time and effort spent obtaining the item, inspecting and cleaning it, writing accurate and comprehensive descriptions about it, creating informative images of the item, packing it carefully, processing the order in one day, offering a 14 day return policy and responding to emails quickly. For more information about the PAAS and other Frame and Wheel shipping and return policies, please see section at the end of the item description. Please visit the Frame and Wheel website for more information about the company and the service.

Review of condition
The frame set is in fair condition. There is corrosion in the following locations on the frame: the bottom of the bottom bracket, the bottom of the down tube, under the top tube near the junction with the head tube; surrounding the top tube cable stops; around the down tube bosses; on the head tube; at the junction of the chain stays, bottom bracket and seat tube; around the water bottle cage mounts; on the the top of the non drive chain stay; and around the drop outs on the front fork. This corrosion has caused the finish to bubble and chip. There is a 1 mm x 40 mm scratch on the non drive side head tube. There is a 2 mm x 30 mm scratch on the drive side down tube on the third “n” in Cannondale. There is wear on the seat tube from the front derailleur hanger. There is wear around the rear and front drop outs.

Otherwise, the frame set is clean and ready for restoration and build. There are no dents, bends or bulges that raise concerns about the structural integrity of the frame. The rear triangle is in alignment with the centerline of the frame to within 4.0 millimeter (the width of two pennies). The rear derailleur hanger is straight and undamaged. The cable stops are welded securely and free of obstructions. There is no damage or corrosion in the head tube bore. The bottom bracket threads are not stripped. There are no dents, bends or bulges that raise concerns about the structural integrity of the front fork. The threads on the steer tube are not stripped. The headset bearings are not corroded. The head set turns smoothly.

Frame and Wheel conclusion
Frame and Wheel’s view is that this Cannondale R800 will make a fine restoration project for the Cannondale enthusiast or classic bike collector. It will also make a fine candidate for the bike builder who wants to get some practice repainting aluminum frame sets. The frame set may also have a future as fixed gear machine. Despite its obvious cosmetic problems, the frame set still has a healthy voice that speaks of performance in a classic accent. The new owner will have fun getting this frame set back on the road and may even choose to keep the finish as it is (they certainly do not paint them like this anymore). A great opportunity to obtain an aluminum frame set at an attractive valuation.

Specifications:
Brand: Cannondale
Model: R800 2.8 road race series
Size: 58 cm
Model year: 1995
Color: Wild Orchid fade to Blue metallic (EVP)
Frame material: Kinesis aluminum
Frame serial number: illegible
Fork material: aluminum blades steel steer tube
Fork model: Kinesis Lightweight Aluminum
Design: traditional road
Wheel size: 700c
Frame and Wheel rating: Fair condition
Frame and Wheel PAAS charge: $20.00

Following measurements are by Frame and Wheel
Total weight: 2.1 kg / 4 pounds 12 ounces (frame: 1,400 g fork: 580 g headset bearings and components: 140 g).
Center of BB to top of seat tube: 60.5 cm (c-t)
Effective top tube length: 58.0 cm (c-c)
Head tube length: 16.5 cm

Following measurements by Cannondale
Size: 58
Seat tube angle (degrees): 73.1
Head tube angle (degrees): 73.0
Effective top tube length: 58.0 cm
Actual top tube length: 57.5 cm
Seat tube length to top: 60.5 cm
Chain stay length: 40.6 cm
Fork rake: 3.8 cm
Bottom bracket height: 27.3 cm
Wheelbase: 99.6 cm
Trail: 6.4 cm
Stand over: 82.8 cm


Front fork
Brand: Cannondale
Model: Kinesis Lightweight Aluminum
Weight: 580 g
Front fork length: 37.0 cm
Steer tube serial number: K4102210  BOA 58
Crown serial number: none
Crown material: steel
Steer tube material: aluminum
Steer tube diameter: 1 inch (25.4 mm)
Steer tube length: 20.5 cm (base of crown race to top)
Crown race seat diameter: 26.4 mm
Drop outs: aluminum
Brake type: recessed caliper
Rake: 3.8 mm

Other specifications
Seat post inner diameter: 27.2 mm
Bottom bracket: English thread 1.37 x 24 68 mm
Cane Creek Standardized Headset Identification System (SHIS): EC30/25.4-24tp1  EC30/26
Headset: Campagnolo Veloce
Drop outs: rear: vertical alloy
Rear derailleur hanger: alloy replaceable
Front derailleur hanger type: clamp-on
Front derailleur clamp size: 31.8 mm
Cabling: external top tube down tube chain stay
Rear fork spacing: 130 mm
Front fork spacing: 100 mm



Classic 1987 Dave Moulton 30th Anniversary Fuso FR1 steel frameset 52cm pink white blue road

Sold: $450  Buyer: Taiwan
Classic 1987 Dave Moulton 30th Anniversary Fuso FR1 steel frameset 52cm pink white blue road
Frame and Wheel is auctioning a 1987 Dave Moulton 30th Anniversary Fuso FR1 frame set frame set on the Frame and Wheel eBay Store. The frame set was purchased new in 1996. It was built up and used recreationally. It was last ridden in 2007. It has been in a garage since then. The owner is selling it because he is clearing out his garage of cycling equipment. The frame set features Columbus steel tubing, Fuso lugged front fork and Shimano 105 external cup head set. The frame features Columbus drop outs, crafted lugs, top tube eyelets for external cabling, bottom bracket external cable routing, bosses for down tube shifting, seat stay chain hanger, adjustable semi horizontal rear drop outs, mounts for two water bottle cages, original three tone finish (pink white blue) and Dave Moulton 30th Anniversary Fuso provenance. The frame set as shown weigh 6 pounds  2 ounces (2.8 kg). The serial number on the bottom of the bottom bracket shell reads 1155. Please see 140 additional images of the frame set at Frame and Wheel’s Flickr page. Please see the Frame and Wheel website for more information about the service.

Important information
There is a $50.00 Product Analysis and Service (PAAS) charge included in the shipping for this item. The PAAS charge covers or defrays the cost of packaging materials and compensates Frame and Wheel for the time and effort spent obtaining the item, inspecting and cleaning it, writing accurate and comprehensive descriptions about it, creating informative images of the item, packing the item carefully, processing the order in one day, offering a 14 day return policy and responding to emails quickly. For more information about the PAAS and other Frame and Wheel shipping and return policies, please see section at the end of the item description. Please visit the Frame and Wheel website for more information about the company and the service.

Review of condition
The frame set is in very good condition. It is clean and ready for build. There are no dents, bends or bulges that raise concerns about the structural integrity of the frame. The rear triangle is in alignment with the centerline of the frame to within 1.5 millimeter (the width of a penny). The rear derailleur hanger is straight and undamaged. The adjustable axle position bolts are not damaged. There is no road wear on the bottom of the down tube, the back of the seat tube or the inside of the chain stays. There is no wear from a front derailleur clamp. The cable stop on the chain stay is undamaged and free of obstructions. The cable housing eyelets on the top tube are undamaged and clear of obstructions. The seat post collar binder bolt is undamaged. The external cups are mounted securely to the frame. The bottom bracket is not damaged. The bottom bracket threads are not stripped. There is no corrosion in the water bottle bolt holes. There are no cracks, bulges, discoloration or flaking that raise concerns about the structural integrity of the front fork. The crown race is securely fixed to the front fork. The crown race is not pitted or corroded. The threads on the steer tube are not stripped. The headset bearings are not corroded. The head set turns smoothly and the headset is complete. The stickers are not peeling off. The head tube badge is mounted securely.

Frame and Wheel notes the following. There is an area of scratching on the non drive side fork blade near the drop out. There is corrosion around the pin holes on the front fork. There are two 2 mm x 2 mm corroded scratches on the bottom side of the top tube. There is a 1 mm x 10 mm scratch on the outside face of the non drive side chain stay. There is a 1 mm x 3 mm scratch near it. There are light scratches on the non drive side chain stay near the Dave Moulton lettering. There is a 3 mm x 25 mm abrasion on the top tube near the junction with the seat tube from cable housing rub. There are light abrasions from cable housing rub along the top of the top tube. There is a 1 mm x 10 mm scratch on the non drive side seat tube near the water bottle cage mount. There are abrasions on the head tube from cable housing rub. There is corrosion inside the bottom bracket. There is wear around the down tube shifting bosses. There is wear around the front and rear drop outs.

Frame and Wheel conclusion
Frame and Wheel’s view is that this Dave Moulton 30th Anniversary Fuso FR1 frame set will make an excellent restoration project for the classic steel bike enthusiast. It will also suit the smaller rider who seeks the smooth ride characteristics of steel and the simpler graphics of late 1980s. The frame set is in very good condition for a 25 year old frame set and shows only light signs of wear. It is a blank slate on which the new owner can create his or her own modern day classic. Built up with SRAM Red components, carbon bars and stem and Zipp 303 tubulars, the bicycle will have a voice that speaks of Dave Moulton’s legendary racing and steel frame building triumphs with a contemporary vocabulary and carbon accent. Regardless of the build, this is a rare and unique opportunity to join the Dave Moulton Peleton.

Specifications:
Brand: Dave Moulton Fuso
Model: 30th Anniversary FR1
Size: 52 cm
Model year: 1987
Color: pink white blue
Frame material: Columbus steel
Frame serial number: 1155
Fork material: Columbus steel
Fork model: Fuso
Design: traditional road
Wheel size: 700c
Frame and Wheel rating: Very good condition
Frame and Wheel PAAS charge: $50.00

Following measurements are by Frame and Wheel
Total weight: 2.8 kg / 6 pounds 2 ounces (frame: 2,000 g fork: 660 g headset bearings and components: 140 g).
Center of BB to top of seat tube: 52.0 cm (c-t)
Effective top tube length: 51.5 cm (c-c)
Head tube length: 10.0 cm
Bottom bracket shell: 68 mm
Chain stay length: 41.0 cm (c-c)
Wheel base: 97.0 cm (c-c)

Following measurements by Fuso Bicycles
Size: 52
Top tube length: 52.0 cm
Approximate seat angle: 76 degrees
Seat tube diameter: 1 inch
Top tube diameter: 1 inch
Down tube diameter: 1 1/8 inch
Bottom bracket drop: 7.0 cm




Front fork
Brand: Fuso
Model: Fuso Lugged
Weight: 660 g
Front fork length: 37.0 cm
Steer tube serial number: 52
Crown serial number: none
Crown material: steel
Steer tube material: steel
Steer tube diameter: 1 inch (25.4 mm)
Steer tube length: 13.5 cm (base of crown race to top)
Crown race seat diameter: 26.4 mm
Drop outs: steel
Brake type: recessed caliper
Rake: 3.5 mm

Other specifications
Seat post inner diameter: 27.2 mm
Bottom bracket: English thread 1.37 x 24 68 mm
Cane Creek Standardized Headset Identification System (SHIS): EC30/25.-24tp1  EC30/26
Headset: Shimano 105
Drop outs: rear: vertical alloy
Rear derailleur hanger: non-replaceable
Front derailleur hanger type: clamp-on
Front derailleur clamp size: 26.0 mm
Cabling: external top tube down tube chain stay
Rear fork spacing: 130 mm
Front fork spacing: 100 mm
