Sold: $240 Buyer: Canada

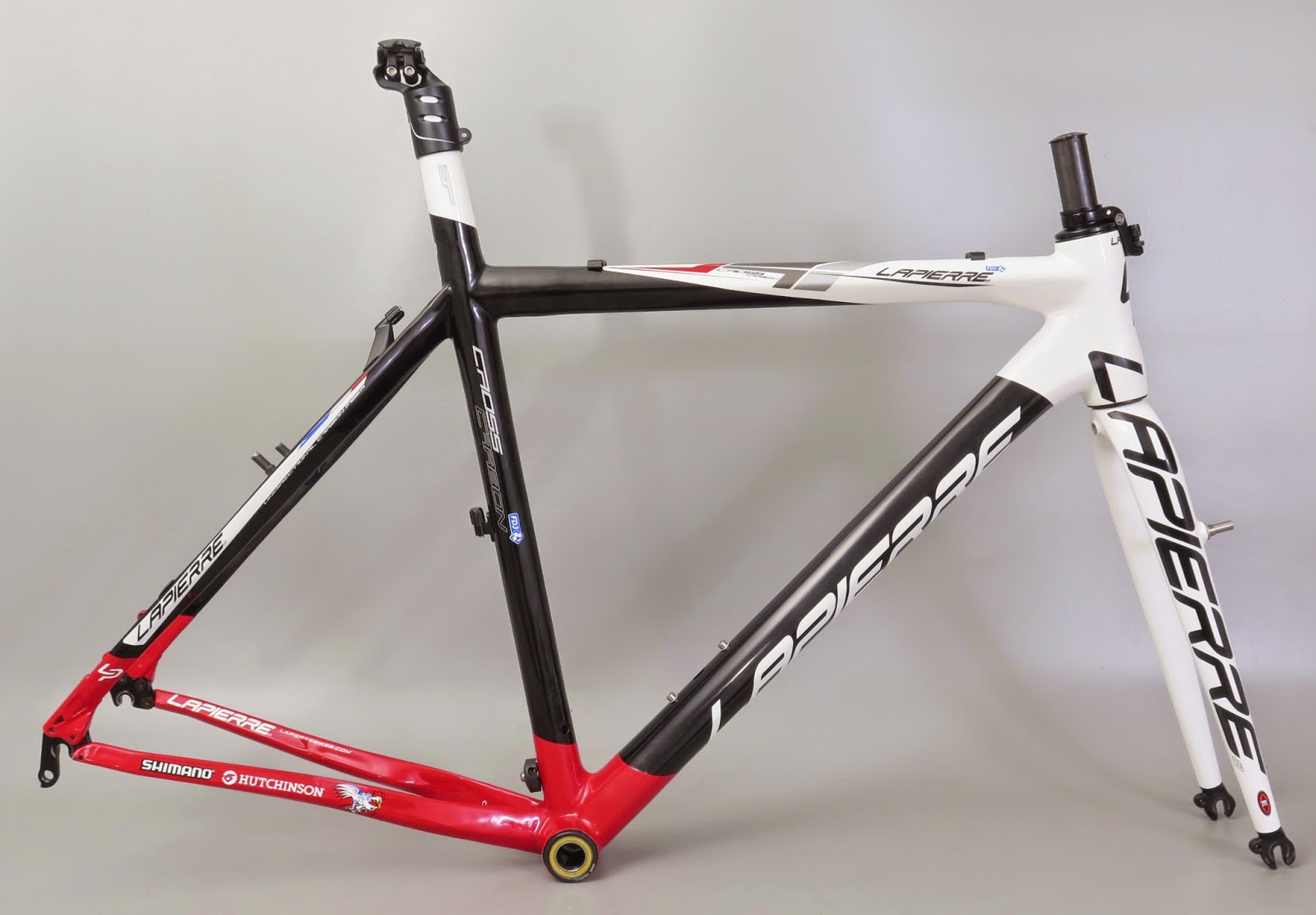

2012 LaPierre Cross Carbon medium frameset Shimano PressFit BB integrated seat post dual Di2 Easton
Comments
Raced three times. In storage. Original owner is the seller.
Review of condition
The rear triangle is in alignment with the centerline of the frame to within 1.5 mm (the width of a penny). 6 mm x 6 mm abrasion on inside surface of non drive side chain stay from wheel rub. Surface wear around top of integrated seat post from installation and removal of seat post topper. Light wear on drive side and non drive side head tube from cable rub. Light wear on seat tube from front derailleur clamp. Wear around rear and front drop outs. Light wear under crown. Ships in new custom frame set box. Please see 90 images of the frameset on the Frame and Wheel Flickr Page.
Specifications:
Brand: LaPierre
Model: Cross Carbon
Model year: 2012
Size: medium
Color: white black red
Frame material: carbon
Frame serial number: LP2104321
Fork material: carbon
Fork model: LaPierre
Series: cyclocross
Wheel size: 700c
Cable routing: electronic / mechanical
Frame and Wheel rating: Good condition
Following measurements are by Frame and Wheel
Total weight: 2.2 kg / 4 pounds 13 ounces (frame: 1,400 fork: 480 g seat mast head: 200 head set: 150 g).
Effective top tube: 53.0 cm (c-c)
Center of BB to top of integrated seat post: 64.5 cm (c-t)
Center of BB to center rails with seat post topper at minimum insert: 69.0 cm
Center of BB to center rails with seat post topper at full insert: 68.0 cm
Center of BB to top of seat with seat post topper at minimum insert: 74.0 cm
Center of BB to top of seat with seat post topper at full insert: 73.0 cm
Head tube length: 14.0 cm
Following measurements are by LaPierre
Seat tube length: 54.0 cm
Top tube length horizontal: 54.0 cm
Stack: 53.1 cm
Reach: 38.8 cm
Head tube length: 14.0 cm
Head tube angle: 71.5 degrees
Seat tube angle: 74.0 degrees
Chain stay length: 42.5 cm
Bottom bracket height: 6.2 cm
Front fork
Brand: LaPierre
Model: Easton
Weight: 480 g
Serial number: F274691 JP1002
Crown material: carbon
Steer tube material: carbon
Steer tube diameter: 1 1/8 inch (28.6 mm) to 1 1/8 inch
Steer tube length: 22.5 cm
Crown race diameter: 30 mm
Drop outs: alloy with safety tabs
Brake type: cantilever
Seat post head:
Brand: LaPierre
Seat clamp type: single bolt alloy
Seat clamp material: alloy
Head material: alloy
Seat clamp bed dimensions: 45 mm x 35 mm
Weight: 200 g
Offset: 15 mm
Seat post diameter: 34.9 mm
Length: 9.0 cm (bottom end of topper to center rails)
Length: 14.0 cm (bottom end of topper to top of seat)
Finish: black
Other specifications
Bottom bracket: Shimano Press Fit GXP / 24 mm
Cane Creek Standardized Headset Identification System (SHIS): IS41/28.6 IS41/30
Headset: OEM
Drop outs: rear: standard front: standard
Rear derailleur hanger: replaceable
Front derailleur hanger: clamp on
Front derailleur hanger clamp diameter: 34.9 mm
Rear fork spacing: 130 mm
Front fork spacing: 100 mm
