2008 Colnago C50 58s SRAM Red Easton EC90SL carbon clincher FSA Plasma TWBK road

Sold: $3,150 Buyer: Australia

2008 Colnago C50 58s SRAM Red Easton EC90SL carbon clincher FSA Plasma TWBK road

Frame and Wheel is auctioning a 2008 Colnago C50 on the Frame and Wheel eBay Store. The frame set was purchased new at Pista Palace in San Diego in 2009. It was built up and used for recreational riding and for wheel demonstration purposes. The owner put less than 1,000 miles on the frame set. It was never raced. It was never crashed. The bike has had only one owner and has always been stored indoors and professionally maintained. It has not been ridden in 2012. The frame set features sloping geometry, the distinctive “high-power” HP chain stays, biconic top tube and down tube, wishbone shaped seat stay (B-stay), straight blade Carbon 75 front fork, carbon lugs, Italian thread bottom bracket and special order and visually pleasing TWBK finish. The bicycle features new 2012 Easton EC90SL carbon clinchers with Lightweight titanium skewers and new Continental tires, 2010 SRAM Red components, FSA Plasma integrated handle bars and Fizik Arione seat. The serial number on the non drive-side drop out is AC 720. The serial numbers on the front fork drop outs are 7D09 (non drive-side) and C076 (drive-side). The bicycle as shown weighs 15 pounds 7 ounces (7.0 kg). The owner is 6 foot 3 inches with an inseam of 34 inches. No pedals included. Two Elite fiberglass water bottle cages included. There are 166 detailed images of the bicycle at Frame and Wheel’s Flickr page.

Important information

There is a $80.00 Product Analysis and Service (PAAS) charge included in the shipping for this bicycle. For more information about the PAAS and other Frame and Wheel shipping and return policies, please see section at the end of the item description. Please visit the Frame and Wheel website for more information about the service and the company.

Review of condition

The bicycle is very good condition. It is clean and ready to ride. The shifting is precise and complete in all twenty gears. The brakes activate easily and grip well. There is 3 mm of pad remaining on the wear indicators. The wheels are true and round and they spin freely and smoothly. There is no cracking, flaking or flexing in the rim or the wall of the wheels. The spokes are straight and tight. There is no wear on the braking surfaces of the rims. The tires are new and holding pressure. There is no discoloration, bulging, flexing or flaking that raise concerns about the structural integrity of the frame or the fork. There is no road wear on the bottom of the down tube, the back of the seat tube or on the inside surfaces of the chain stays. The rear triangle is in alignment with centerline of the frame. The rear derailleur hanger is straight and undamaged. The front derailleur hanger is securely riveted to seat tube and undamaged. The steer tube does not show any cracks or bulges. The crown race is secured firmly. The head set is complete and the cartridge bearings turn smoothly. There is no play in the bottom bracket. There is no corrosion in the bolts on the steer tube, the seat post or in the water bottle cage bolt holes. The cable housing is not cracking and the cables are not corroded. The cable stops are riveted on to the frame securely. There is no flaking or discoloration on the handlebars. The chain does not read 0.75 or 1.0 on the chain wear tool. Frame and Wheel notes the following. There is a 10 mm x 5 mm chip in the finish on the underside of the crown. There are small chips near to it. There is a an 8 mm U-shaped scratch on the underside non drive-side chain stay. There are two 0.5 mm size scratches on the head tube. There is wear around the rear and front drop outs. There are grease marks on the handle bar tape and the tape shows wear. The seat shows some wear. There is light wear on the drive side chain stay from a dropped chain. There is no Ernesto Colnago signature on the top tube.

Frame and Wheel conclusion

Frame and Wheel’s view is that this Colnago C50 will suit the taller and dedicated road  cyclist who appreciates the design features of Colnago frame sets, the functionality of SRAM Red components and the smoothness of Easton EC90SL carbon clinchers. The bike is stiff, comfortable and remarkably light for its size. Additionally, the TWBK finish is a special order finish for this frame. The bike has been very lightly used and has many hours of training and racing remaining in its carbon tubes. Given that the C50 is no longer in production, the new owner will be in possession of a modern day classic that will attract the praises of the peleton, grow sweeter with age and produce many hours of riding satisfaction. Ernesto will be pleased to know that this bike has returned to the road.

Specifications:

Brand: Colnago

Model: C50

Model year: 2008

Size: 58s

Color: TWBK White on nude carbon

Frame material: carbon Carbonio Alto Modulo

Frame design: sloping

Frame serial number: AC 720

Fork design: standard straight blade

Fork material: carbon

Fork model: Colnago Carbon 75

Fork serial number: 7D09 non drive side  C076 drive side

Wheel size: 700c

Frame and Wheel rating: Very good condition

Frame and Wheel PAAS charge: $80.00

Following measurements are by Frame and Wheel

Total weight with wheels: 15 pounds 7 ounces (7.0 kg)

Total weight without wheels: 10 pounds 6 ounces (4.8 kg)

Front wheel weight with skewer, tire and tube: 2 pounds 1 ounces (0.9 kg)

Rear wheel weight with skewer, tire, tube and cassette: 2 pounds 15 ounces (1.3 kg)

Center of BB to top of seat tube: 59.8 cm

Effective top tube: 58.5 cm (c-c)

Seat post length from bottom to center rails: 35.5 cm

Stand over height from middle of top tube: 83.2 cm

Bottom bracket height: 27.3 cm

Head tube length: 18.8 cm

Following measurements are by Colnago

Size: 58s

Seat tube (c-t): 58.0 cm

Seat tube (c-c): 54.0 cm

Top tube length: 59.0 cm

Head tube length: 18.8 cm

Chain stay length: 41.3 cm

Seat tube angle: 72.5 cm

2008 Colnago C50 geometry and specifications

Front fork

Model: Colnago Carbon 75

Model year: 2008

Weight: 410 g (weighed by Frame and Wheel)

Length: 37.5 cm

Serial number: 7D09 non drive side  C076 drive side

Steer tube material: carbon

Steer tube diameter: 1 1/8 inch

Steer tube length: 28.5 cm (base of crown race to top) previously cut

Crown race diameter: 30 mm

Drop outs: alloy

Safety tabs: yes

Brake type: caliper

Handlebar

Brand: FSA

Model: Plasma Integrated Compact

Width (c-c): 44.0 cm at the bar-ends 2 degree outward bend

Stem length: 130 mm

Steer tube clamp diameter: 28.6 mm or 1 1/8 inch

Bar clamp diameter: na

Drop: 135 mm

Reach: 85 mm

Bar tape: White

Rise: zero

Headset

Brand: TH Industries

Steer tube diameter: 1 1/8 inch (30 mm)

Inside chamfer: 36 degrees

Outside chamfer: 36 degrees

Type: sealed cartridges pair

Part number: 872

Cane Creek Standardized Headset Identification System (SHIS): EC34/28.6 ∣ EC34/30

Spacers: 20 mm (1 x 15 mm 1 x 5 mm)

Seat post

Brand: Colnago

Seat clamp type: double bolt alloy

Seat cradle dimension: 43 mm x 30 mm

Seat collar diameter: 31.8 mm

Post material: carbon

Head material: carbon

Clamp material: alloy

Weight: 194 g (weighed by Frame and Wheel)

Offset: 25.0 mm

Post diameter: 28.0 mm

Length: 35.0 cm

Finish: Black

Seat

Brand: Fizik

Model: Arione

Model year: 2006

Weight: 250 g (weighed by Frame and Wheel)

Covering: Synthetic

Length: 300 mm

Width: 130 mm

Rails: titanium

Length of rails: 85 mm

Rail width: 43 mm c-c

Rail diameter: 7 mm

Finish: black

Crank set

Brand: SRAM

Group: Red

Year: 2011

Chain rings: 53T / 39T double

Chain compatibility: 10 speed

Bolt circle diameter: 130 mm

Crank arm length: 175 mm

Spider material: carbon

Finish: black

Serial number: 18JUL11

Rear derailleur

Brand: SRAM

Group: Red

Year: 2010

Serial number: 30T00053809

Cage type: Short

Drive train: 10-speed

Finish: Chrome

Front derailleur

Brand: SRAM

Group: Red

Year: 2010

Serial number: 31T00018232

Type: Braze-on

Crank set compatibility: double and compact (53 x 39 / 50  x 34)

Drive train: 10-speed

Finish: Gray /. silver

Brakes

Brand: SRAM

Group: Red

Year: 2010

Serial number: 44T00041720

Pads: Lightweight by Swisstop

Type: Dual pivot side pull caliper brake

Quick release: yes

Finish: Black

Cassette

Brand: Shimano

Group: Dura Ace

Model: CS-7900

Year: 2008

Gearing: 12, 13, 14, 15, 16, 17, 18, 19, 21, 23, 25

Dual control brake levers

Brand: SRAM

Group: Red

Year: 2010

Serial number: 30T00070459

Speed (R): 10 speed

Speed (L): Double

Finish: Black

Bottom bracket

Brand: FSA

Brand: K-Force / SLK

Bearing type: sealed cartridge ceramic

Threading: Italian (36 x 24 threads per inch)

Shell length: 70 mm

Others

Drop outs: alloy vertical (R) alloy standard (F)

Rear derailleur hanger: replaceable

Front derailleur hanger: riveted for braze-on

Cabling: external

Chain: SRAM PC 1070

Pedals: not included

Bottle cages: Elite fiberglass

Front

Brand: Easton

Model: EC90SL

Model year: 2012

Rim material: carbon

Type: clincher

Serial number: 081245

Size: 700c

ERTO: 622 x 12.5 mm

Front wheel weight with skewer: 2 pounds 1 ounces (0.9 kg)

Spoke count: 18

Spokes: Sapim steel bladed black external nipples

Lacing: Radial

Hub: Easton R4SL

Skewer: Lightweight titanium

Rim depth: 38 mm

Rim width: 20.5 mm (o-o)

Tire: Continental GP Attack 700 x 22

Over Lock Nut Dimension: 100 mm

Finish: Black / White

Rear

Brand: Easton

Model: EC90SL

Model year: 2012

Rim material: carbon

Type: clincher

ETRTO: 622 x 12.5

Size: 700c

Weight with skewer and sprocket: 2 pounds 15 ounces (1.3 kg)

Spoke count: 24

Spokes: steel bladed white external nipples

Lacing: drive-side: 1-cross  non drive-side: radial

Hub: Easton R4SL

Skewer: Lightweight titanium

Rim depth: 38 mm

Rim width: 20.5 mm (o-o)

Tire: Continental GP Force 700 x 22

Over Lock Nut Dimension: 130 mm

Finish: Black / white

Free hub body: Shimano

Rotor 3D time trial alloy crank set 53T/39T 175mm double road round chain rings Cervelo

Sold: $230 Buyer: United Kingdom

Rotor 3D time trial alloy crank set 53T/39T 175mm double road round chain rings Cervelo

Frame and Wheel is auctioning a Rotor 3D Time Trial crank set on the Frame and Wheel eBay Store. The crank set is from an independent bicycle store’s inventory of spare parts. The crank set was switched out from a Cervelo bicycle. The crank set features aero alloy spider, Rotor Aero 53T round “No-Q” outer chain ring, Rotor round “No-Q” 39T inner chain ring, compatibility with all 130 mm bolt center diameter chain rings, compatibility with all Shimano 24 mm diameter bottom brackets, Cervelo branding and 175 mm crank arms. The crank set is in good condition. It is clean. The chain rings are not bent and the teeth are not chipped or broken or worn into the shape of shark fins. The chain ring bolts are not stripped and not locked into place. None of the chain ring bolts are missing. The splines are undamaged. The crank arm fixing bolt is not missing. The crank arm cap bolt is not missing. The bolt holes for the pedals are not stripped and are not corroded. Frame and Wheel notes the following. There is wear on the the outer and inner chain ring teeth from the chain. There is a 2 mm x 5 mm indelible ink mark on one of the Rs in Rotor. There are stains on the surface of the outer chain ring. There are stains on the outsides surfaces of the crank arms. The outsides surfaces of the crank arms show stains. Requires Rotor BB30 to BB24 convertor for use on BB30 frame set. The rings are round. They are not elliptical. A very unique crank set with plenty of hours of use remaining and available at an attractive valuation. 1

Specifications

Brand: Rotor

Model: 3D Time Trial

Model year: 2010 + / -

Crank arm and spider material: aluminum alloy

Spline Interface: 14 splines

Chain rings: 53T Aero Rotor round No-Q ring 7075-T6 outer 39T Rotor No-Q round ring inner

Chain compatibility: 9 / 10 speed

Type: Double

Series: Time trial

Crank arm length: 175 mm

Bolt circle diameter: 130 mm

Spindle length: 108 mm integrated (end to end of spindle measured by Frame and Wheel)

Spindle diameter: 24 mm

Q factor: 147 mm

Finish: Black

Weight: 745 g

Frame and Wheel rating: Good condition

Frame and Wheel PAAS charge: $10.00

More information

BB30 compatibility

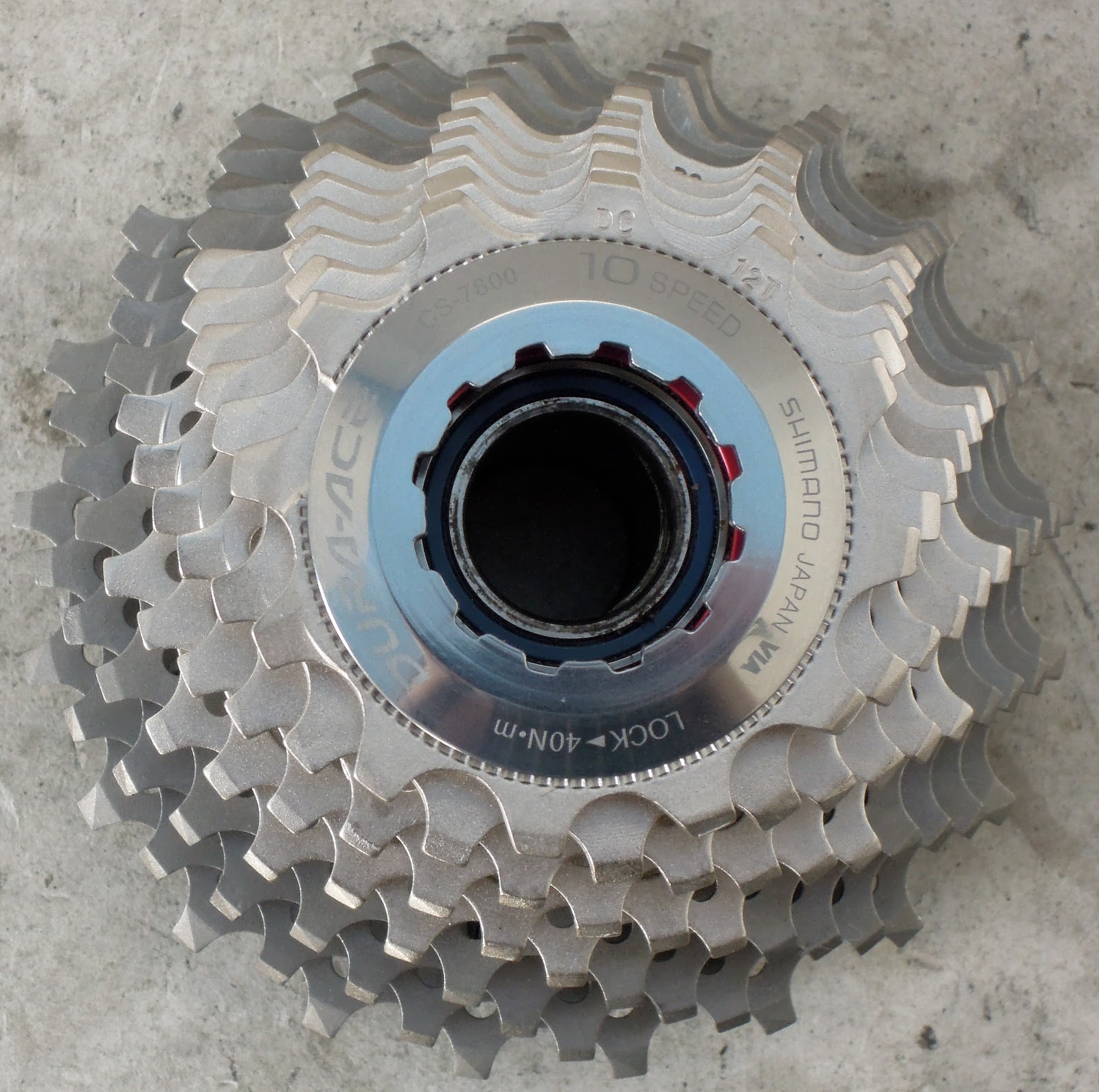

NOS 2008 Shimano Dura-Ace CS-7900 10 speed cassette 11-23

Sold: $116  Buyer: USA

NOS 2008 Shimano Dura-Ace CS-7900 10 speed cassette 11-23

Frame and Wheel is auctioning a Shimano Dura Ace CS-7900 10 speed cassette on the Frame and Wheel eBay store. The cassette is excess inventory from an independent bicycle dealer. It has never been used. It has been in storage. The cassette is in excellent condition. It is clean and ready for installation. All the sprockets and sprocket spacers are included. The threading on the lock ring is not stripped. The lock ring spacer is not damaged. Low spacer included. An excellent opportunity to obtain a high performance cassette at a compelling valuation. Free hub body is not included!

Specifications

Brand: Shimano

Group: Dura-Ace

Year: 2008

Model: CS-7900

Gearing: 11, 12, 13, 14, 15, 16, 17, 19, 21, 23

Weight: 165 g

Frame and Wheel rating: Excellent condition

Frame and Wheel PAAS charge: $10.00

NOS 2005 Shimano Dura-Ace CS-7800 10 speed cassette 12-21

Sold: $114  Buyer: USA

NOS 2005 Shimano Dura-Ace CS-7800 10 speed cassette 12-21

Frame and Wheel is auctioning a Shimano Dura-Ace CS-7800 cassette on the Frame and Wheel eBay Store. The cassette is excess inventory from an independent bicycle dealer. The cassette has never been installed or used. It has been in storage. The cassette is in excellent condition. It is clean and ready for installation. It is in its original packaging. All the sprockets and sprocket spacers are included. The threading on the lock ring is not stripped. The lock ring spacer is not damaged. Low spacer not included. An excellent opportunity to obtain a high performance cassette at a compelling valuation. Free hub body is not included!

Specifications

Brand: Shimano

Group: Dura-Ace

Model: CS-7800

Year: 2005

Gearing: 12, 13, 14, 15, 16, 17, 18, 19, 20, 21

Weight: 183 g

Frame and Wheel rating: Excellent condition

Frame and Wheel PAAS charge: $10.00

2007 Shimano SH-R220 road shoe pair white men size Euro 43 US 9 CM 27 NOS

Sold: $87  Buyer: USA

2007 Shimano SH-R220 road shoe pair white men size Euro 43 US 9 CM 27 NOS

Frame and Wheel is auctioning a pair of Shimano SH-R220 road shoes on the Frame and Wheel eBay Store. The shoes are from an independent bicycle stores inventory of unsold accessories. The shoes have been in storage. They were used for indoor bike fittings. The shoes feature heat moldable insoles, carbon out soles, nylon mesh uppers, adjustable buckle, dual velcro closure straps, three hole cleat compatibility and pearl white finish. The shoes are in very good condition. They are clean and they smell like new shoes. The adjustable buckle and velcro closure system works properly. There are no cracks or flaking in the carbon outsole. The bolts for the cleats are not stripped or corroded. There is no wear around the edges of the collar. There is no wear on the heel pads. The insoles are clean and ready to be “heat-molded” to the users feet. Frame and Wheel notes the following. there are two 2 mmx 10 mm smudge marks on the left vamp on the right shoe. There is a 1 mm x 1 mm spot of blue ink on the right vamp of the left shoe. An excellent opportunity to obtain effectively new performance road shoes at a very reasonable valuation. Cleats not included. Original box, instructions, arch pads and carrying bag included.

Specifications

Brand: Shimano

Model: SH-R220

Type: Men

Model year: 2007 (FJ)

Shimano sizing: Euro: 43  US: 9  CM: 27

Zappos sizing: Euro: 39-40  US: 9  UK: 7 Inches: 9.9 CM: 25

Serial number: SPDR220W430

Series: Road

Insert width: 85 mm measured by Frame and Wheel at widest point of insert

Insert length: 27.8 cm or 11 inches measured by Frame and Wheel

Weight: 332 g each 664 g pair

Midsole: carbon

Cleat pattern: three hole

Body material: nylon mesh

Outsole material: carbon

Finish: pearl white

Cleat compatibility: 3 hole road

Insole: Shimano moldable Custom-Fit Insole

Frame and Wheel rating: Very good condition

Frame and Wheel PAAS charge: $15.00

Bike Radar review

2010 Selle Italia SL seat steel alloy rails white road NOS

Sold: $27  Buyer: USA

2010 Selle Italia SL seat steel alloy rails white road NOS

Frame and Wheel is auctioning a Selle Italia SL seat on the Frame and Wheel eBay Store. The seat is from an independent bicycle store’s inventory of spare parts. The seat was switched out from a new bicycle and placed in storage. The seat has never been used. The seat features Lorica covering, steel alloy rails and light weight. The seat is in excellent condition. It is clean and ready for installation. There are no rips or wear on the seat surface. The rails are straight and undamaged. The rails are securely fixed into the shell. A very nice seat available at an excellent valuation.

Specifications

Brand: Selle Italia

Model: SL

Model year: 2010

Weight: 219 g (weighed by Frame and Wheel)

Covering: Lorica synthetic

Series: Road

Shell material: plastic

Length: 275 mm

Width: 140 mm

Rails: steel alloy

Length of rails: 80 mm

Rail seat width: 42 mm c-c

Rail diameter: 7.0 mm

Finish: Black

Frame and Wheel rating: Excellent condition

Frame and Wheel PAAS charge: $10.00

NOS 2010 Catlike Whisper Plus helmet size large red white black road

Sold: $141 Buyer: USA

NOS 2010 Catlike Whisper Plus helmet size large red white black road

Frame and Wheel is auctioning a 2010 Catlike Whisper Plus helmet on the Frame and Wheel eBay Store. The helmet is new old stock from an independent bicycle store. The helmet has never been used. It has been in inventory. The helmet features adjustable strap for head sizes between 58 to 61 cm (23 to 24 inches), comprehensive ventilation, extra pads, carrying case and light weight. The helmet is in excellent condition. It is clean and ready for use. There are no chips or cracks in the styrofoam body or the plastic shell. The adjustable retention system and the chin strap clips work properly. The pads adhere to their velcro patches securely. A new and very nice high performance helmet available at an excellent valuation.

Specifications

Brand: Catlike

Model: Whisper Plus

Model number: 211P

Type: Road

Year: 2010

Size: LG 58 cm to 61 cm (23 to 24 inches)

Weight: 311 g

Finish: red white black

Frame and Wheel rating: Excellent condition

Frame and Wheel PAAS charge: $15.00

See the link

NOS 2010 Catlike Whisper Plus helmet size small white road

Sold: $113 Buyer: USA

NOS 2010 Catlike Whisper Plus helmet size small white road

Frame and Wheel is auctioning a 2010 Catlike Whisper Plus helmet on the Frame and Wheel eBay Store. The helmet is new old stock from an independent bicycle store. The helmet has never been used. It has been in inventory. The helmet features adjustable strap for head sizes between 50 to 53 cm (19.5 to 21 inches), comprehensive ventilation, extra pads, carrying case and light weight. The helmet is in excellent condition. It is clean and ready for use. There are no chips or cracks in the styrofoam body or the plastic shell. The adjustable retention system and the chin strap clips work properly. The pads adhere to their velcro patches securely. A new and very nice high performance helmet available at an excellent valuation.

Specifications

Brand: Catlike

Model: Whisper Plus

Model number: 000P

Type: Road

Year: 2010

Size: SM 50 cm to 53 cm (19.5 to 21 inches)

Weight: 284 g

Finish: White

Frame and Wheel rating: Excellent condition

Frame and Wheel PAAS charge: $15.00

See the link

New Austro-Daimler Superleicht Carbon Di2 56cm frame set white road

Sold: $410  Buyer: United Kingdom

New Austro-Daimler Superleicht Carbon Di2 56cm frame set white road

Frame and Wheel is auctioning a new Austro-Daimler Superleicht Carbon Di2 56 cm frame set on the Frame and Wheel eBay Store. This frame set is one of eight “sample” Austro-Daimler Superleicht Carbon Di2 framesets. It has been in inventory for one year during which time Frame and Wheel has been working on the development of an eBay distribution channel, the construction of a current and informative website, and the build and test of the frame set as a fully built-up bike. This Austro-Daimler frame set has never been built up and it has always been stored indoors. Please see a review about the fully built up bike at the Frame and Wheel blog and testimonials from the three other owners of this frame set. Please see an image of Frame and Wheel and his Austro-Daimler Superleicht Di2 in action at the Tour of the Battenkill 2012. Please see additional images of the frame set at Frame and Wheel’s Flickr page. There is additional information about the frame set geometry and available sizes at the Frame and Wheel website.

The Privileges Remain the Same

The frame set is being auctioned in order to determine a market driven “price-point” for the other frame sets and future frame sets. Although you are obtaining your frame set on eBay in an auction, you do not in any way forfeit privileges that you would expect from a traditional retailer or a big name bicycle brand. The frame sets are new and Frame and Wheel stands behind them. The only difference is that you are paying a market price for the frame set rather than a pre-determined price. Frame and Wheel offers a fourteen day day money back return policy for all of its eBay transactions, and original owners of Austro-Daimler frame sets are eligible for the Frame and Wheel Credit or Cash program and the Frame and Wheel Clear Your Gear program. Please see the bottom of the description page for more information on both of these programs.

Austro-Daimler Superleicht Carbon Di2 frame set features

The frame set is designed for electronic shifting (Di2). Cable stops are absent and there are openings on the bottom bracket and the down tube for wires and junctions. The frame set features an Austro-Daimler 37SL carbon fork, full internal cabling, pearl white paint finish, tapered head tube, oversized down tube, seat tube and chain stays, asymmetrical top tube, front and rear carbon drop outs, bolt-on front derailleur hanger for the front derailleur, replaceable rear derailleur hanger and English thread 68 mm bottom bracket. The frame set includes full carbon seat post, single bolt adjustable seat clamp, threadless sealed cartridge bearing head set assembly, alloy seat post collar, chain stay plate and “fishing-line” and fittings for Di2 installation. The serial number on the bottom of the bottom bracket reads CG1101003029. The serial number under the crown of the front fork reads CG1101003049. The frame set as shown weighs 1.70 kg or 3 pounds 12 ounces. The frame set is covered by Frame and Wheel’s Credit or Cash warranty program and is eligible for the Frame and Wheel Clear Your Gear program.

Review of condition

The frame set is in excellent condition. It is clean and ready for build. There are no scratches, chips or flaking in the finish of the frame. There are no cracks or bulges that raise concerns about the structural integrity of the frame or the fork. The rear drop outs are in alignment with the centerline of the frame and the rear derailleur hanger is straight and undamaged. There is no wear on the back side of the seat tube, under the down tube, along the chain stays or under the crown of the front fork. The front derailleur hanger is screwed securely to the seat tube and is undamaged. The steer tube is not cracked or flaking. The front fork has safety tabs. The headset is complete. There is no corrosion in the bottom bracket or in the water bottle bolts. The threads on the bottom bracket are not stripped.

For the build

The frame set is new and should be prepared and built-up by an experienced and skilled mechanic who is also familiar with installing Shimano Di2 components. The use of a drill is required to expand the opening at the top of the bottom bracket for the front derailleur wire. The bottom bracket and rear derailleur hanger threads should be chased and faced. Water bottle bolts and chain stay protector strip is not included. Frame and Wheel will be pleased to send the frame set directly to the independent bicycle dealer of your choice and will incentivize them to work with you. In this way you will be combining the value, convenience and selection of the Internet with the service, support and community of the local bike store.

Frame and Wheel conclusion

Frame and Wheel’s view is that the Austro-Daimler Superlecht Carbon Di2 frame set will suit the performance cyclist who seeks to up grade to a stiff and light frame set that is designed explicitly for electronic shifting. It might suit the masters category cyclist who raced an Austro-Daimler Superleicht thirty years ago and seeks to vicariously relive the glory days of his golden youth. It may also suit the younger rider who seeks something competitive and current in terms of technology, but with a classic European voice. Built up with carbon tubular wheels and a Shimano Dura-Ace 7900 group set, the frame set becomes a bicycle that will allow the new owner to achieve these wants and desires and perhaps a few heroic wins or flyers. The new owner for a time will also be one of four riders in the world riding an Austro-Daimler Superleicht Carbon Di2 road bike. Frame and Wheel is very happy to have the company.

Specifications:

Brand: Austro-Daimler

Model: Superleicht Carbon Di2

Size: 56 cm

Color: White

Frame material: carbon

Frame serial number: CG1101003029

Fork material: carbon

Fork model: Austro-Daimler 37SL

Design: compact geometry road

Wheel size: 700c

Frame and Wheel rating: Excellent condition

Following measurements are by Frame and Wheel

Total weight: 1.70 kg / 3 pounds 12 ounces (frame: 1,030 g fork: 370 g seat post: 216 g headset components: 120 g).

Center of BB to top of seat tube: 56 cm (c-t)

Effective top tube length: 56.5 cm (c-c)

Head tube length: 15.5 cm

Head tube angle: 73.5 degrees

Seat tube angle: 73.5 degrees

Chain stay length: 41.0 cm

Front center: 59.6 cm

Bottom bracket drop: 6.8 cm

Wheel base: 99.6 cm

Stack: 56.5 cm

Reach: 38.9 cm

Front fork

Model: Austro-Daimler 37SL: white finish, carbon drop outs, safety tabs.

Weight: 370 g

Front fork length: 37.0 cm

Steer tube serial number: PP-100045 CGF11D 1009023

Crown serial number: CG1101003049

Steer tube material: carbon

Steer tube diameter: 1 1/8 inch to 1 1/4 inch

Steer tube length: 30.0 cm (base of crown race to top) uncut

Crown race diameter: 33 mm

Drop outs: carbon

Brake type: caliper

Rake: 4.5 cm

Seat post:

Model: Austro-Daimler carbon seat post

Seat clamp type: GLC single bolt / thumb wheel bolt

Seat clamp material: alloy

Post material: carbon

Weight: 216 g

Offset: 25.0 mm

Post diameter: 31.6 mm

Length: 350 mm (bottom to center rails) uncut

Finish: White with Austro-Daimler logo

Other specifications

Seat post collar: alloy single bolt 34.9 mm

Bottom bracket: English standard 68 mm (1.370 inch x 24 tpi)

Headset: Cane Creek Standardized Headset Identification System (SHIS): IS42/28.6  47/33.0 OEM integrated sealed cartridge bearings (upper) 7H 41.8 x 30.2 x 45 x 45 (lower) 8H 47 x 35 x 45 x 45 (1 1/8 inch upper to 1 1/4 inch lower)

Spacers: not included

Drop outs: rear: vertical carbon front: standard carbon

Rear derailleur hanger: alloy replaceable

Front derailleur hanger: threaded mount, alloy for braze-on

Cabling: internal top tube, down tube and chain stay

Rear fork spacing: 130 mm

Front fork spacing: 100 mm

Frame and Wheel Credit or Cash Program

Frame and Wheel has observed through its secondary market business that many cyclists tire of their performance carbon frame sets after about three years and replace them with newer or different models. The old frame sets are either sold on eBay, allowed to collect dust in the basement indefinitely or sent to the landfill. Thus, the origination of the Frame and Wheel Credit or Cash program. This program allows the original owner of an Austro-Daimler frame set to return it to Frame and Wheel for what ever reason (crash damage, normal wear and tear, defect, product evolution, upgrade, etc.) in return for a credit towards a new frame set or an outright market driven cash payment. This program is easier to understand and manage than existing warranty and crash replacement programs, it creates value and satisfaction for customers and it does something for sustainability.

Frame and Wheel Clear Your Gear

Please send in your old frame set or any other unused or unwanted cycling equipment to Frame and Wheel Auction Services in the box in which you received your frame set. Frame and Wheel Auction Services will auction your old items on your behalf and forward the proceeds to you net of expenses and a commission (Please see Frame and Wheel Auction Services for more information about commissions). This program defrays the cost of your new frame set and reduces cycling equipment clutter in your home. It also allows for the sustainable use of Frame and Wheel’s fleet of custom made frame set boxes. For domestic customers, shipping is paid by Frame and Wheel and Federal Express will pick up the box from your location. For international customers, contact Frame and Wheel regarding shipping cost and you will be reimbursed through Pay Pal.

If you are not interested in sending gear to be auctioned, that is fine and understood. Frame and Wheel will still be very grateful to have the box back so that frame sets can continue to be delivered to customers around the world. Be sure write your name and home town on the side of the box so we will know where the box has been! If you cannot be bothered to send the box back or you would like to keep the box, that is fine too. Frame and Wheel will invoice you the cost of the box ($60.00) after three weeks and it will be yours!
